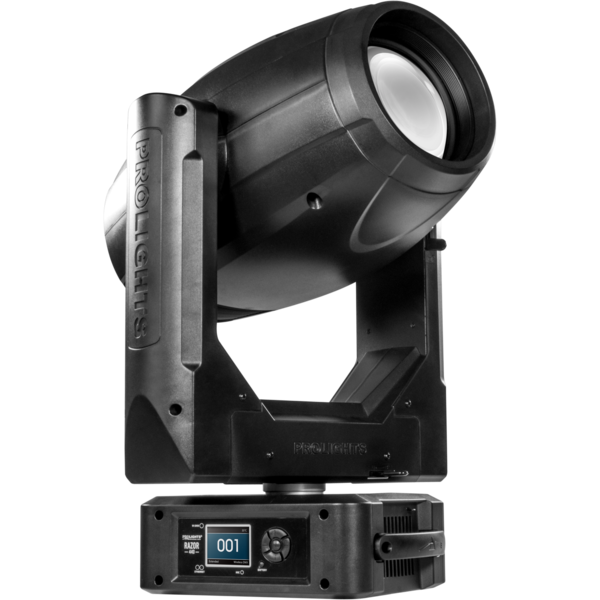

RAZOR440
440W
RAZOR440 is a hybrid moving light delivering a full toolkit for designers in a single fixture. Harnessing the power of the 440W discharge source with a custom optical system, it provides a punchy beam, even wash and crisp spot - all from a single unit.
Features:
Massive 2° to 50° linear zoom range with sharp image projection
Full CMY colour mixing system, plus 3 colour wheels including CTC filters
Extensive effects including animation wheel, rotating gobo wheel, static gobo wheel, dual prisms and linear frost
LIGHT SOURCE
- Source: 440W Osram Sirius HRI
- CT: 7000K
- Luminous flux: 15700lm
- Lux: (2°) 140000lux @15m
- Lux: (50°) 3000lux @10m
- Source life expectancy: 1.500 h
OPTICS
- Zoom: 2°~50° motorised linear zoom
- Lens diameter: 153mm
- Lens type: high-quality glass lens optics
- Focus: motorised with auto-focus
COLOUR SYSTEM
- Colour mixing: CMY colour system on 3 gradually fading colour wheels
- CTC: on wheel 2500K and 3200K + CTB
- Colour wheel: 13 dichroic filters + open on 3 independent colour wheels
DYNAMIC EFFECTS
- Animation wheel: animation wheel with CW and CCW rotation
- Rotating gobos: 6 rotating gobos + open, interchangeable, indexing
- Gobo size: gobo Ø 26 mm - img Ø 13 mm - 1.1 mm
- Fixed gobos:18 fixed gobos + open
- Gobo size: gobo Ø 25.9 mm - img vØ 13 mm - 1.1 mm
- Circular prism: 3f with bi-directional rotation, indexing
- Linear prism: 6f with bi-directional rotation, indexing
- Frost: linear 0-100% frost filter
BODY
- Pan angle: 630° - 540°
- Tilt angle: 267°
- Pan/Tilt resolution: bit 8/16 bit
- Feedback: automatic repositioning after accidental movement
- Body:aluminium structure with hi-resistance polycarbonate cover
- Body colour: black
CONTROL
- Protocols: DMX512, RDM, Art-Net,W-DMX
- DMX channels: 21 / 24 / 26channel
- W-DMX: included, wireless solution receiver
- RDM: RDM ready for fixture remote monitor and settings
- Display: LCD high resolution colour display with autoflip
- Firmware upgrade:via menu with internal memory or via USB-DMX interface (UPBOX2) not included
- Hibernation: power safe mode when lost DMX
ELECTRONICS
- Dimmer: linear 0~100% mechanical dimmer
- Strobe / shutter: 1~28 flash(s), mechanical
- Battery backup: battery backup for user operation without connecting to the main power
- Operating temperature: -10° ~ +45°
ELECTRICAL
- Power supply: 100-240V – 50/60Hz
- Power consumption (at 230V): 585W
- Power consumption (at 120V): 585W
PHYSICAL
- Cooling: combination of heat pipe cooling system and low noise fan
- Sospension and fixing: any position with quick-lock omega brackets
- Pan / tilt lock: pan / tilt locking for transportation and maintenance
- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Data connection: Art-Net RJ45 IN/OUT
- Power connection: Neutrik powerCON TRUE1 IN connector
- IP rating: 20
- Dimensions (WxHxD): 411x714x258mm
- Weight: 27kg
RAZOR440

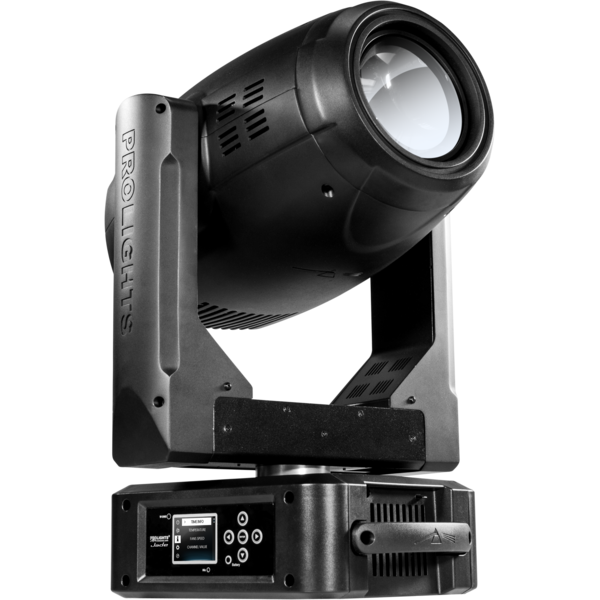

JADE
280W
JADE is a hybrid moving light delivering a full toolkit for designers in a single, compact fixture. Harnessing the power of the 280W discharge source with a custom optical system, it provides a punchy beam, even wash and crisp spot - all from a single unit.
Features:
Massive 2° to 23° zoom range with beam and spot modes
13 position colour wheel including CTC filters
Extensive effects including: rotating gobo wheel, static gobo wheel, dual prisms and linear frost
LIGHT SOURCE
- Source: 280W Osram Sirius HRI
- CT: 7800K
- Luminous flux: 9826lm
- Lux: (2°) 31390lux @5m
- Lux: (5.5°) 2562lux@5m
- Source life expectancy: 2000 h
OPTICS
- Zoom: Beam: 2°-10° Spot: 5.5°-23° motorised linear zoom
- Lens diameter: 117mm
- Lens type: high-quality glass lens optics
- Additional optics: Heat filter to switch from Beam to Spot modes
- Focus: motorised with auto-focus
COLOUR SYSTEM
- CTC: on wheel 2500K and 3200K + CTB
- Colour wheel: 13 dichroic filters + open
- Macros: linear, half colours, colour bounce
DYNAMIC EFFECTS
- Rotating gobos: 9 rotating gobos + open, interchangeable
- Gobo size: gobo Ø 15.9 mm - img Ø 12 mm - thk 1.1 mm
- Fixed gobos: 14 fixed gobos + open
- Circular prism: 8f with bi-directional rotation, indexing
- Linear prism: 6f with bi-directional rotation, indexing
- Frost: frost unit to soften the beam edge
BODY
- Pan angle: 630-540°
- Tilt angle: 265°
- Pan/Tilt resolution: bit 8/16 bit
- Feedback: automatic repositioning after accidental movement
- Body: aluminium structure with hi-resistance polycarbonate cover
- Body colour: black
CONTROL
- Protocols: DMX512, RDM, W-DMX
- DMX channels:14 / 16 / 22 / 23channel
- W-DMX: included, wireless solution receiver
- RDM: RDM ready for fixture remote monitor and settings
- Display: LCD high resolution colour display
- Firmware upgrade: yes, via USB-DMX interface (UPBOX2) not included
- Hibernation: power safe mode when lost DMX
ELECTRONICS
- Dimmer: linear 0~100% mechanical dimmer
- Strobe / shutter: 1-25 flash(s), mechanical
- Battery backup: battery backup for user operation without connecting to the main power
- Operating temperature: -10° ~ +45°
ELECTRICAL
- Power supply: 100-240V – 50/60Hz
- Power consumption (at 230V):423W
- Power consumption (at 120V): 423W
PHYSICAL
- Cooling: forced air with low noise fan
- Sospension and fixing any position with quick-lock omega brackets
- Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
- Power connection: Neutrik powerCON TRUE1 IN connector
- IP rating: 20
- Dimensions (WxHxD): 355x619x235mm
- Weight: 17kg
JADE

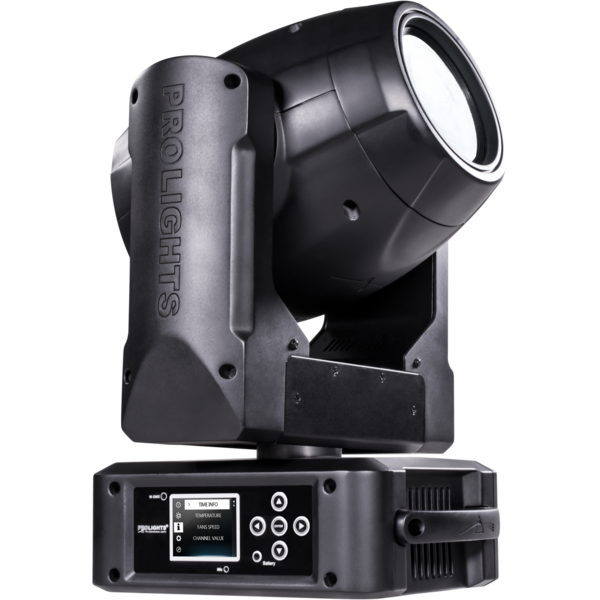

RUBY
132W
RUBY is a compact beam light that harnesses all the power of its Osram Sirius 132W lamp into a tight, bright and sharp 2° beam. Designed to cut through even the brightest stage, the RUBY's clean and concentrated beam competes with much more powerful beam lights.
Features:
14 position colour wheel including CTC filters
Compact and lightweight design for creative freedom and easy rigging
Extensive effect options: frost, fixed gobo wheel and dual indexing with rotating prisms
LIGHT SOURCE
- Source: 132W Osram Sirius HRI
- CT: 9200K
- CRI: 60
- Luminous flux: 5150lm
- Lux: 393000lux @5m
- Source life expectancy: 6.000 h
OPTICS
- Beam angle: 2°
- Lens diameter: 98mm
- Lens type: high-quality glass lens optics
- Focus: motorised
COLOUR SYSTEM
- CTC: on wheel 2500K and 3200K + CTB
- Colour wheel: 14 dichroic filters + open
- Macros: linear, half colours, colour bounce
DYNAMIC EFFECTS
- Fixed gobos: 17 fixed gobos + open
- Circular prism: 8f with bi-directional rotation, indexing
- Linear prism: 6f with bi-directional rotation, indexing
- Frost: frost unit to soften the beam edge
BODY
- Pan angle: 630-540°
- Tilt angle: 265°
- Pan/Tilt resolution: bit 8/16 bit
- Feedback: automatic repositioning after accidental movement
- Body: aluminium structure with hi-resistance polycarbonate cover
- Body colour: black, white finishing available
CONTROL
- Protocols: DMX512, RDM
- DMX channels: 11 / 13 / 14 / 17channel
- W-DMX: optional, wireless solution receiver
- RDM: RDM ready for fixture remote monitor and settings
- Display: LCD high resolution colour display
- Firmware upgrade: yes, via USB-DMX interface (UPBOX2) not included
- Hibernation: power safe mode when lost DMX
ELECTRONICS
- Dimmer: linear 0~100% mechanical dimmer
- Strobe / shutter: 1-25 flash(s), mechanical
- Battery backup: battery backup for user operation without connecting to the main power
- Operating temperature: -10° ~ +45°
ELECTRICAL
- Power supply: 100-240V – 50/60Hz
- Power consumption (at 230V):212W
- Power consumption (at 120V): 212W
- Output (at 230V): 8 units on a single power line
PHYSICAL
- Cooling: forced air with low noise fan
- Sospension and fixing: any position with quick-lock omega brackets
- Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
- Power connection: Neutrik powerCON IN/OUT connectors
- IP rating: 20
- Dimensions (WxHxD): 294x437x200mm
- Weight: 10.5kg
RUBY
