LED SCREENS

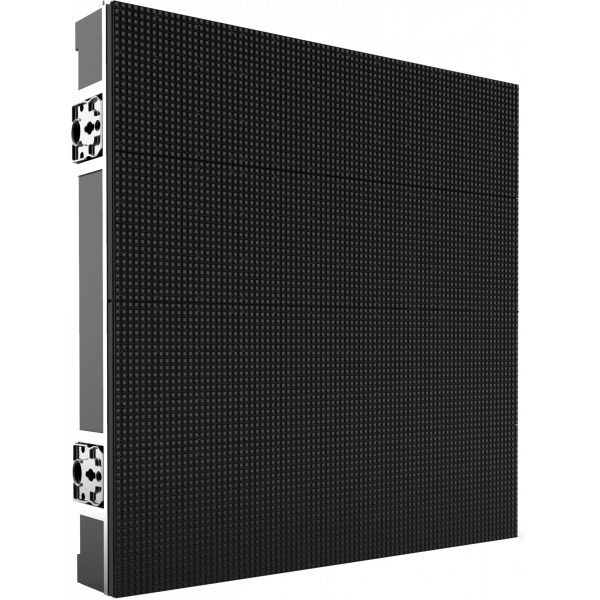

OMEGAX39B







OMEGAX39B is a revolutionary indoor 3.9mm LED screen rental panel, designed to offer advanced mechanical features, more creative configurations and empowered video image quality.

Mechanical/assembly features:

  • Curve configurations both concave and convex through curving mounting plates (0-10 concave, 0-5 convex)
  • Seamless 90° corners through special 45° cutter cabinets (left & right version available)
  • Front service of magnetic replacement of the LED module for immediate service
  • Climbable, designed for a quick maintenance access
  • Hot swapping of the back panel to replace PSU & electronics
  • Assisted mounting magnets for 1 man quick setup
  • Ground stacking accessories available
  • Corner protection for safe transport in case
  • Velcro on the edges to don’t see gaps
  • Fly bars are suitable for both hanging or ground stacking application

Components/Electronic features:

  • Premium components
  • Module with memory to store calibration database
  • Magnetic front and back LED module replacement
  • Black mask for superior contrast and rentability
  • 18 bit+ greyscale (4 times high than market average)
  • Rotation function enabled
  • New Novastar A8s receiver
  • IP powerCON IN/OUT
  • IP dataCON IN/OUT
  • CE, EMC, UL approved

Image Quality:

  • New Novastar A8s Receiving card
  • 18 bit+ Greyscale, 4 time higher than the market average. Effectively improve greyscale performance under low brightness, showing more exquisite and more expressive images.
  • Clearview technology, by adjusting the texture, size and contrast of images in different areas to further enhance the image details.
  • Smart gamma correction: gamma correction is automatically applied according to the display brightness, achieving a better greyscale performance and providing clearer pictures.
  • Rotation enabled: rotation of panels recognized by software @ 360°
  • RCFGX restore, firmware copy, mapping MCTRLR5 sending fully supported
Features:
3.9mm pixel pitch indoor rental LED Screen
Seamless 90° angles
Curve configurations, concave and convex
Fly bar hanging/stacking
New Novastar A8s with 18bit+, Clearview and image rotation

MECHANICS
  • Other specifics:
    curve configurations, climbable, rear panel swapping, corner protection for transport, velcro strips for gapless mounting

  • Magnetic LED modules: available

  • Module size (WxH): 250x250mm

  • Panel size(WxHxD): 500x500x90.6mm

  • Vertical hanging system: built-in aliscaf clamp support
  • Cooling: Natural cooling of the peculiar chassis and to absence of fans
  • Connection: Seamless locking system
  • Curvability: 2°, 5°, 10° concave - 2°, 5° convex°
  • Body: Die-cast aluminium housing
  • Color: Black
  • Internal protection: IP30 (front and rear)
  • Panel weight: 9kg
  • Weight per square meter: 36kg
  • Hanging Panel Quantity ≤: 20
  • Compliant Standard: CE, EMC, UL
VIDEO
  • Driver chip type: MBI 5124
  • LED source: SMD 2121 full black
  • Pixel pitch: 3.9mm
  • Panel resolution: 128x128pixels
  • Module resolution: 64x64pixels
  • Luminous flux: 1000nit
  • Contrast: 3000:1
  • Grayscale: 18 bit
  • Refresh rate ≥: 1920Hz
  • Drive Mode: 1/16 scan, constan current
  • Vertical viewing angle: 120°
  • Horizontal viewing angle: 140°
  • LED density: 65536LED/sqm
  • Dead Pixel Ratio: <0,002
  • LED avg life span: 100'000
CONTROL
  • Receiving card type: A8S
  • Other controllers type: Rotation, 18bit+, clearview, mapping, firmware copy, RCFGX restore, calibration restore
  • Control protocol: Novastar
  • Signal input: IP data Seetronic IN
  • Signal output: IP data Seetronic OUT
ELECTRICAL
  • Power input/output: IPKON Seetronic IN/OUT
  • Power supply: AC 110/230V 50/60Hz
  • Max power consumption (panel): 160W
  • Avg power consumption (panel): 53W

  • Max power consumption (sqm): 640W
  • Avg power consumption (sqm): 212W
  • Standby power consumption (pannello): 20W
  • Max rated current/panel:: AC220V/0.55A
  • Max power output: 120Wmodules
  • Working temperature: -10°C/+45°C
  • Working humidity: 10~80 RH%
OMEGAX39B

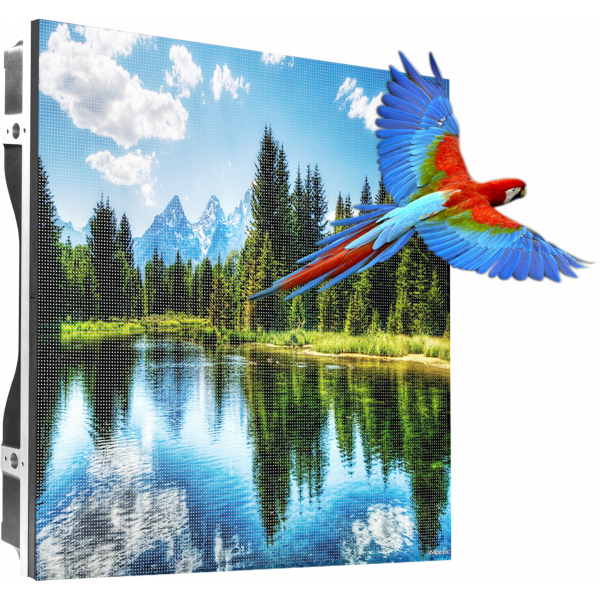

APIX2







In this fast-paced market, the ALPHAPIX family keep ahead of the game by consistently delivering top-quality images with the latest high-resolution indoor LED displays. The ALPHAPIX family use black-faced SMD LED for high-contrast and superb colour consistency in a robust, lightweight die-cast aluminium housing. The frame and fast interlocking system create a seamless image with minimal setup time. To deliver the perfect image, the ALPHAPIX series features a high refresh-rate, advanced greyscale properties and automatic image correction along with a viewing angle of up to 160°.

Features:
Rental-friendly die-cast aluminium housing
Black-face LED for high-contrast and superb colour consistency
Magnetic front access LED display modules for fast and easy maintenance
Flicker-free on camera
High-performance video reproduction at every level of brightness
160° viewing angle
CE and EMC certified by TUV

MECHANICS
  • Module size (WxH): 250x250mm
  • Panel size(WxHxD): 500x500x90mm
  • Vertical hanging system: built-in aliscaf clamp support
  • Cooling: Natural cooling of the peculiar chassis and to absence of fans
  • Connection: Seamless locking system
  • Body: Die-cast aluminium housing
  • Color: Black
  • Internal protection: IP40
  • Panel weight: 8kg
  • Weight per square meter: 32kg
  • Hanging Panel Quantity ≤: 20
  • Compliant Standard: CE
VIDEO
  • LED source: SMD 2020 high-power FC black face
  • Pixel pitch: 2.97mm
  • Panel resolution: 168x168pixels
  • Module resolution: 84x84pixels
  • Luminous flux: 1000nit
  • Grayscale: 16 bit
  • Refresh rate ≥: 3840Hz
  • Drive Mode: 1/16 scan, constan current
  • Vertical viewing angle: 160°
  • Horizontal viewing angle: 160°
  • LED density: 112'896LED/sqm
  • Dead Pixel Ratio: <0,002
  • LED avg life span: 100'000
CONTROL
  • Control protocol: Novastar
  • Signal input:RJ45
  • Signal output: RJ45
ELECTRICAL
  • Power input/output: PowerCON
  • Power supply: AC 110/230V 50/60Hz
  • Max power consumption (panel): 130W
  • Avg power consumption (panel): 45W
  • Max power consumption (sqm): 520W
  • Avg power consumption (sqm): 180W
  • Standby power consumption (pannello): 10.8W
  • Max rated current/panel:: AC 220V/0.6A
  • Max power output: 8modules
  • Working temperature: -10 ~ +40°C
  • Working humidity: 10 - 90%
APIX2

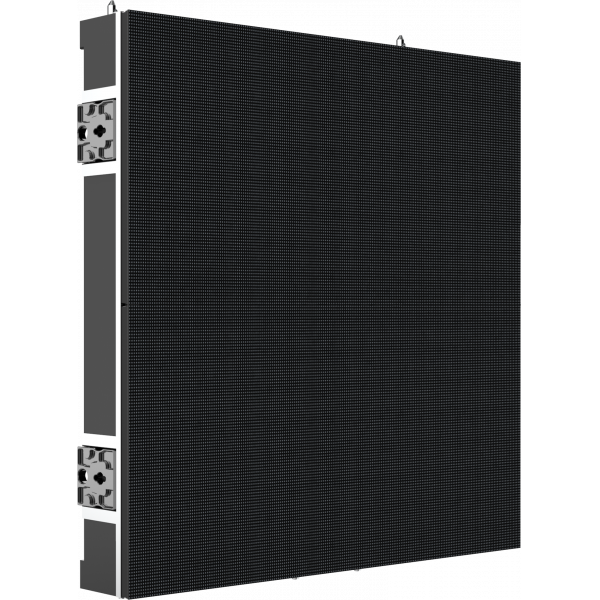

OMEGAX39C45LB






Features:
Seamless 90° corners through special 45° cutter cabinets.
Curve configurations both concave and convex through curving mounting plates:
• 0-10° Concave (10°, 5°, 2°)
• 0-5° Convex (5°, 2°)

MECHANICS
  • Magnetic LED modules: available
  • Other specifics: curve configurations, climbable, rear panel swapping, cornerprotection for transport, velcro strips for gapless mounting
  • Module size (WxH): 250x250mm
  • Panel size(WxHxD): 500m×500mm×90.6mm
  • Vertical hanging system: built-in aliscaf clamp support
  • Cooling: Natural cooling of the peculiar chassis and to absence of fans
  • Connection: Seamless locking system
  • Curvability: concave 2°, 5°, 10° convex - 2°, 5°
  • Body: Die-cast aluminium housing
  • Color: Black
  • Internal protection: IP30 (front and rear)
  • Panel weight: 9kg
  •
  • Hanging Panel Quantity ≤: 20
  • Compliant Standard: CE, EMC, UL
VIDEO
  • Driver chip type:
    MBI 5124
  • LED source: SMD 2121 full black
  • Pixel pitch: 3.9mm
  • Panel resolution: 128x128pixels
  • Module resolution: 64x64pixels
  • Luminous flux: 1000nit
  • Contrast: 3000:1
  • Grayscale:   18 bit
  • Refresh rate ≥: 1920Hz
  • Drive Mode: 1/16 scan, constan current
  • Vertical viewing angle: 120°
  • Horizontal viewing angle: 140°
  • LED density: 65536LED/sqm
  • Dead Pixel Ratio: <0.002
  • LED avg life span: 100'000
CONTROL
  • Receiving card type: A8S
  • Other controllers type: Rotation, 18bit+, clearview, mapping, firmware copy, RCFGX restore, calibration restore
  • Control protocol: Novastar
  • Signal input: Waterproof Seetronic RJ45
  • Signal output: Waterproof Seetronic RJ45
ELECTRICAL
  • Power input/output:  Seetronic TRUE powerCON
  • Power supply: AC 110/230V 50/60Hz
  • Max power consumption (panel): 120W
  • Avg power consumption (panel): 40W
  • Max power consumption (sqm): 480W
  • Avg power consumption (sqm): 160W
  • Standby power consumption (pannello): 20W
  • Max rated current/panel:: AC220V/0.55A
  • Max power output: 120Wmodules
  • Working temperature: -10°C/+45°C
  • Working humidity: 10~80 RH%
OMEGAX39C45LB

OmegaX 48T

ORDER CODE: OMEGAX48T







4,8 mm pixel pitch outdoor rental LED screen

OMEGAX48T is a revolutionary outdoor 4,8 mm LED screen rental panel. Specially designed to offer advanced mechanical features, more creative configurations and enhanced video image quality.

Mechanical/Assembly features:

  • Curve configurations both concave and convex through curving mounting plates +15° / -15° onboard
  • Hot swapping of the back panel to replace PSU & electronics
  • Fast lock connections for LDMs swapping
  • Assisted mounting magnets allowing for a 1 man quick setup
  • Ground Stacking accessories available
  • Velcro on edges to avoid any gaps

Main features:

  • 4,8 mm pixel pitch outdoor rental LED screen
  • Curve configurations, concave and convex
  • Fly bar hanging/stacking
  • New Novastar A8s with 18bit+, Clearview and image rotation







TECHNICAL SPECIFICATIONS

VIDEO
  • Driver chip type: MBI 5252
  • LED source: Kinglight SMD2525
  • Pixel pitch: 4.8mm / 0.19''
  • Panel resolution: 104x208pixels
  • Module resolution: 52x104pixels
  • Luminous flux: 4.000nit
  • Contrast: 3.000:1
  • Grayscale: 18 bit
  • Refresh rate ≥: 2.880Hz
  • Drive Mode: 1/13 scan, constant current
  • Vertical viewing angle: 120°
  • Horizontal viewing angle: 140°
  • LED density: 43.264LED/sqm
  • Dead Pixel Ratio: <0,002
  • LED avg life span: 100.000
ELECTRICAL
  • Power input/output: IPKON Seetronic IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 400W
  • Avg power consumption (panel): 133W
  • Max power consumption (sqm): 800W
  • Avg power consumption (sqm): 266W
  • Standby power consumption (pannello): 35W
  • Max rated current/panel:: AC 220 V / 1,6 A
  • Working temperature: -20°C / +50°C
  • Working humidity: 10~90 RH%
CONTROL
  • Receiving card type: A8S
  • Other controllers type: rotation, 18bit+, clearview, mapping, firmware copy, RCFGX restore, calibration restore
  • Control protocol: Novastar
  • Signal input: IP data Seetronic IN
  • Signal output: IP data Seetronic OUT
MECHANICS
  • Other specifics: curve configurations, rear panel swapping, velcro strips for gapless mounting
  • Magnetic LED modules: not magnetic, removible by joint
  • Module size (WxH): 250x500mm / 9.84''x19.69''
  • Panel size(WxHxD): 500×1.000×76mm / 19.69''
  • Vertical hanging system: built-in aliscaf clamp support
  • Cooling: natural cooling of the peculiar chassis and to absence of fans
  • Connection: seamless locking system
  • Curvability: mechanics on board, -15° to +15°, can be adjusted by the unit of 2.5°
  • Body: die-cast aluminium housing
  • Color: black
  • IP rating: IP65 (front and rear)
  • Panel weight: 12kg / 26.46lbs
  • Weight per square meter: 24kg / 52.91lbs
  • Hanging Panel Quantity ≤: 10
  • Compliant Standard: CE, EMC, UL





OMEGAX 48T
