PROTRUSS

LIFTING SYSTEMS

 LIFTERS

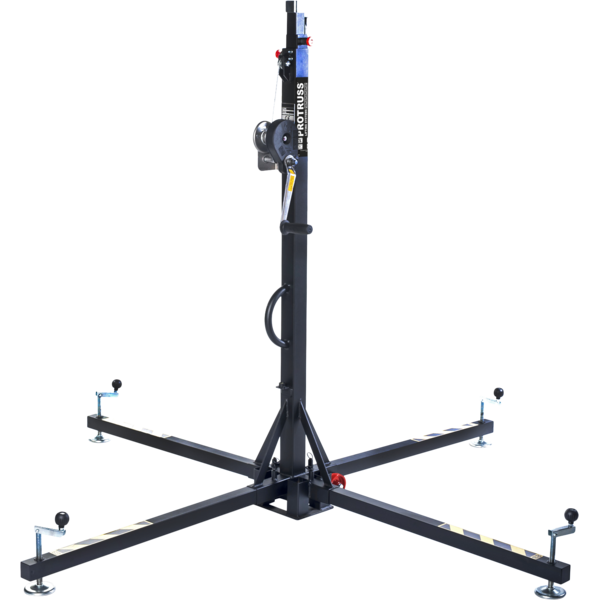

PL12H40

Telescopic lifter



Features:
Made of zinc plated steel, highly resistant to corrosion and oxidation
Crank winch with an automatic brake allowing for smooth and easy lifting
Automatic safety device
Two wheels mounted on the base for an easy transport
Four base legs with a wide and independent height adjustment
Built-in spirit-level for perfect levelling

TECHNICAL INFORMATION
  • Max load: 120kg
  • Min load: 25kg
  • Max height: 4mt
  • Height (folded): 1,57mt
  • Base area (open): 177x177cm
  • Inner frame diameter: 35mm
  • Lifter weight: 32kg


PL12H40

Telescopic lifter

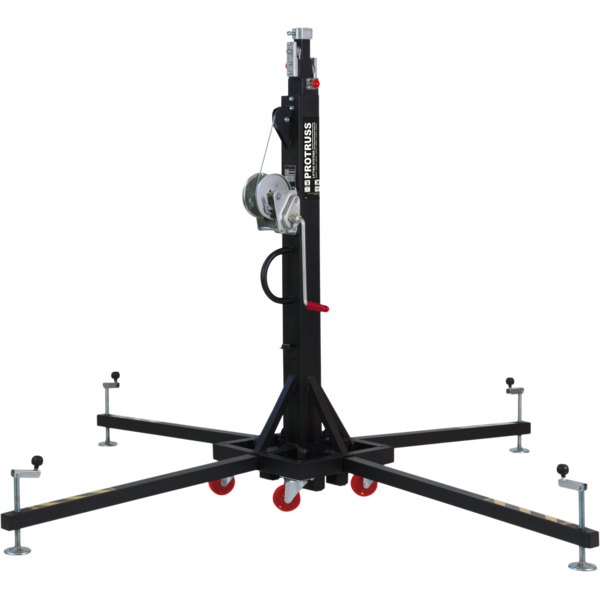

PL22H53

Telescopic lifter





Features:
Made of zinc-plated steel, highly resistant to corrosion and oxidation
Manual winch with automatic brake allowing for smooth and easy lifting
Automatic safety device
Four swivel wheels on the base for ease of transport
Four independent stabilising legs, with adjustable mounting plates
Built-in spirit level to help maintain vertical position during installation and adjustment

TECHNICAL INFORMATION
  • Max load: 220kg

  • Min load: 25kg

  • Max height: 5,3mt

  • Height (folded): 1,7mt

  • Base area (open): 211x211cm

  • Inner frame diameter: 38mm

  • Lifter weight: 72kg

PL22H53

Telescopic lifter
EXP500T

Lifter with 4 telescopic sections.




Features:
Made from high-strength aluminium
Black finish epoxy paint protecting against scratches
Lighter than a traditional iron lifter
Ultra-compact allowing for easy stacking, easily transportable
Stabilisation system with 4 removable and adjustable legs
Absence of steel cables or cords that can break
Stabilisation system with adjustable foot tripod and bubble balance
Dual safety system: automatic during lifting, manual whilst working and at rest
Automatic safety system with no need for security PINs
Absence of knobs or other devices to be tightened to improve stability
Simple and fast installation opening tripod legs
Adjust to any level of height (cm by cm) in the range, without tightening stages
Winch rack allows you to preserve the lightness at the maximum lift height
Pull-out handle to prevent accidental tampering

TECHNICAL INFORMATION
  • Max load: 150kg

  • Max height: 5

  • Folded dimensions: 42 x 42 x 185cm

  • Base area (open): 200 x 200cm

  • Inner frame diameter: 35mm
  • F
  • Legs:4 with stabilizers

  • Colour: Black finish

  • Material: Aluminium and steel

  • Accessories: 35mm M adapter included

  • Lifter weight: 47kg

EXP500T

Lifter with 4 telescopic sections.
WU380

Wind-up lifter with 3 telescopic sections.



Features:
Made from high-strength aluminium
Lightweight and compact
Absence of breakable steel cables and cords
Automatic safety system with no need for security PINs
Absence of knobs or other devices to be tightened to improve stability
Simple and fast installation - opening tripod legs
Adjust to any height (cm by cm) in the range, without tightening stages

TECHNICAL INFORMATION
  • Max load: 80kg

  • Max height: 3,8mt

  • Folded dimensions: 13 x 13 x 175cm
  • Base area (open): Ø 120cm
  • Colour: Black finish


  • Material: Aluminium and steel


  • Accessories: 750 mm extension and 28-35 mm M adapter Included


  • Lifter weight: 17kg

WU380

Wind-up lifter with 3 telescopic sections.
WU280

Wind-up lifter with 2 telescopic sections.


Features:
Made from high-strength aluminium
Lightweight and compact
Absence of breakable steel cables and cords
Automatic safety system with no need for security PINs
Absence of knobs or other devices to be tightened to improve stability
Simple and fast installation - opening tripod legs
Adjust to any height (cm by cm) in the range, without tightening stages

TECHNICAL INFORMATION
  • Max load: 80kg

  • Max height: 2,8mt

  • Folded dimensions: 13 x 13 x 150cm

  • Base area (open): Ø 120cm

  • Legs: tripod

  • Colour: Black finish

  • Material: Aluminium and steel

  • Accessories: 28-35 mm M adapter optional

  • Lifter weight: 15kg

WU280

Wind-up lifter with 2 telescopic sections.

CATALOGUE

 TRUSSES

TQ52

Titan square section aluminium truss with 52cm sides


Features:
Lengthwise: extruded tubes, Ø 50x4 mm 6082 T6
Diagonal: extruded tubes, Ø 30x3 mm 6082 T6
Plate: conical quick-lock connectors
Fast connection kit FCQ5T included

FCQ5T Square section 52 cm TITAN Truss, extrude tube 50x4mm, FCQ5 included


 CodeTube (mm)Diagonal (mm)W (cm)H (cm)D (cm)Weight (kg)Volume (mc)
TQ5205050x430x35052528,400,135
TQ5210050x430x3100525215,300,270
TQ5215050x430x3150525224,300,406
TQ5220050x430x3200525229,700,541
TQ5225050x430x3250525236,200,676
TQ5230050x430x3300525246,900,811
TQ5240050x430x3400525256,101,082

TQ52

Titan square section aluminium truss with 52cm sides

HQ40
Heavy square section aluminium truss with 40cm sides


Features:
Lengthwise: extruded tubes, Ø 50x3 mm 6082 T6
Diagonal: extruded tubes, Ø 25x2 mm 6082 T6
Plate: conical quick-lock connectors
Fast connection kit FCQ5 included.


FCQ5 Square section 40 cm HEAVY Truss, extrude tube 50x3mm, FCQ5 included

 CodeTube (mm)Diagonal (mm)W (cm)H (cm)D (cm)Weight (kg)Volume (mc)Color
HQ4005050x320x25040405,10,080AL
HQ40050B50x320x25040405,10,080BK
HQ4010050x320x210040408,30,160AL
HQ40100B50x320x210040408,30,160BK
HQ4015050x320x2150404012,10,240AL
HQ40150B50x320x2150404012,10,240BK
HQ4020050x320x2200404015,60,320AL
HQ40200B50x320x2200404015,60,320BK
HQ4025050x320x2250404019,10,400AL
HQ40250B50x320x2250404019,10,400BK
HQ4030050x320x23004040220,480AL
HQ40300B50x320x23004040220,480BK
HQ4035050x320x2350404025,10,560AL
HQ40350B50x320x2350404025,10,560BK
HQ4040050x320x2400404028,30,640AL
HQ40400B50x320x2400404028,30,640BK
HQ4045050x320x2450404032,60,720AL
HQ40450B50x320x2450404032,60,720BK
HQ4050050x320x2500404035,90,800AL
HQ40500B50x320x2500404035,90,800BK


HQ40

Heavy square section aluminium truss with 40cm sides

HQ30

Heavy square section aluminium truss with 29cm sides


Features:
Lengthwise: extruded tubes, Ø 50x3 mm 6082 T6
Diagonal: extruded tubes, Ø 20x2 mm 6082 T6
Plate: conical quick-lock connectors
Fast connection kit FCQ5 included

FCQ5 Square section 29 cm HEAVY Truss, extrude tube 50x3mm, FCQ5 included

 CodeTube (mm)Diagonal (mm)W (cm)H (cm)D (cm)Weight (kg)Volume (mc)Color
HQ3005050x320x25029294,100,042AL
HQ30050B50x320x25029294,100,042BK
HQ3010050x320x210029297,100,084AL
HQ30100B50x320x210029297,100,084BK
HQ3015050x320x2150292910,600,126AL
HQ30150B50x320x2150292910,600,126BK
HQ3020050x320x2200292913,700,168AL
HQ30200B50x320x2200292913,700,168BK
HQ3025050x320x2250292916,700,210AL
HQ30250B50x320x2250292916,700,210BK
HQ3030050x320x2300292919,00,252AL
HQ30300B50x320x2300292919,00,252BK
HQ3035050x320x2350292923,00,294AL
HQ30350B50x320x2350292923,00,294BK
HQ3040050x320x2400292924,900,336AL
HQ30400B50x320x2400292924,900,336BK
HQ3045050x320x2450292927,800,378AL
HQ30450B50x320x2450292927,800,378BK
HQ3050050x320x2500292931,00,421AL
HQ30500B50x320x2500292931,00,421BK

HQ30

Heavy square section aluminium truss with 29cm sides

CATALOGUE

 MODULAR STAGES

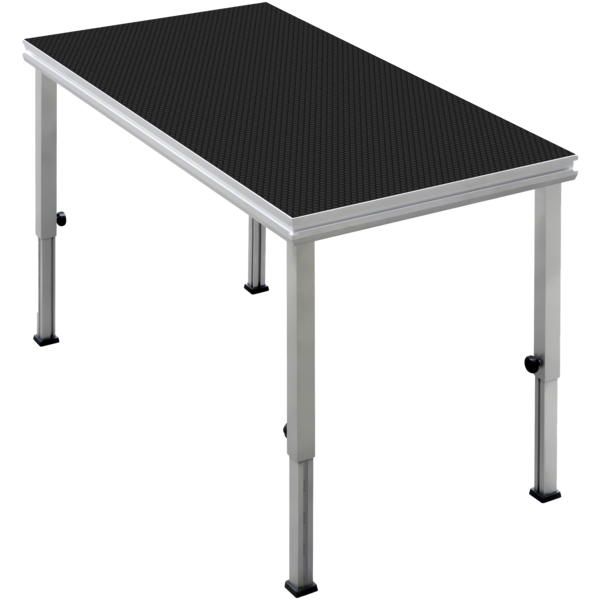

RSP

Deck panel in carply for modular stage system ROADSTAGE series, fire-proof and anti-skid, suitable for indoor and outdoor applications





Features:
Made of carply 12mm
Resistant to weathering agents
Panel frame made of aluminium
Load capacity 500 kg/sqm (TUV standard)-750 kg/sqm (CEE standard)

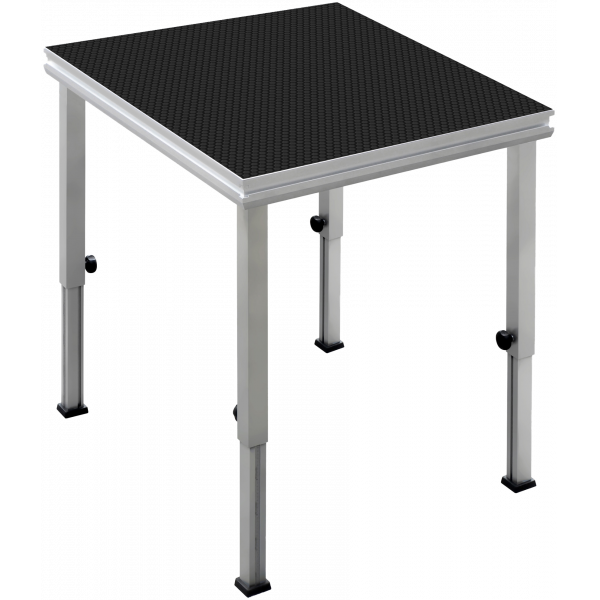

RSP

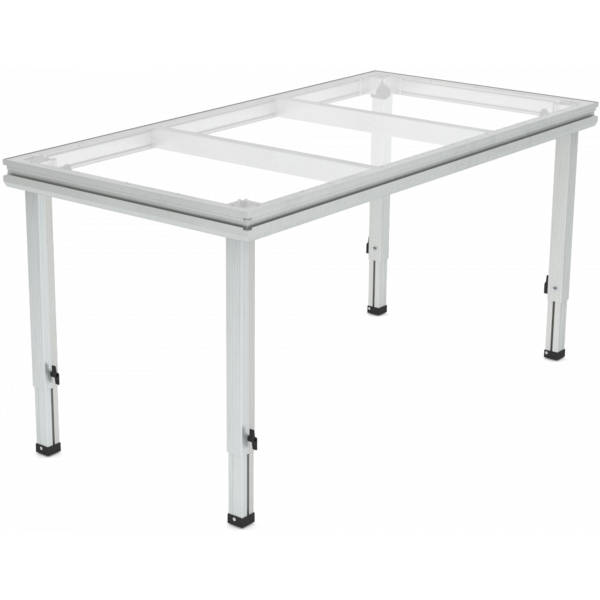

RSX

Deck panel in plexiglass




Features:
Made of carply 12mm
Resistant to weathering agents
Panel frame made of aluminium
Load capacity 500 kg/sqm (TUV standard)-750 kg/sqm (CEE standard)

RSX
