ABOUT GLP
Founded by Udo Künzler in 1994 and headquartered in Karlsbad in Southern Germany, GLP (German Light Products GmbH) is a leading manufacturer of cutting edge lighting technology equipment and remains at the forefront of LED technology within the entertainment lighting sector.
The company’s award-winning X4 series has become a standard around the world, specified by top LDs for its versatile and packed feature set. Constantly expanding its product range, GLP is committed to bringing environmentally friendly lighting technology to designers without expecting them to compromise in their artistic expectations.
In 2009, GLP purchased the German video company G-LEC and increased its global presence by establishing a subsidiary in Los Angeles, USA, and in Hong Kong the following year. Entering the current decade GLP continued to expand its horizons by setting up a new Nordic office, based in Sweden.
FAVORITES
GT-1 FL
The GT-1 FL from GLP is a true hybrid fixture, working as both a Spot and a Beam fixture with highest levels of performance. Using a high powered 470 Watt discharge lamp, its high quality optical system produces a light beam that features an enormous 22:1 ratio zoom range from 3.5° to 56,7°.
When in spot mode, the GT-1 FL offers a wide range of effects, including CMY color mixing, eight rotating gobos, 14 fixed pattern gobos, additional beam reduction gobos, and an interchangeable animation wheel. But it doesn’t stop there, the GT-1 also features three different rotating prisms, a fixed color wheel with CTO/CTB filters, and a frost for softening the beam.
When in beam mode, the GT-1 FL produces an astonishing highly parallel beam of light at 2.5° through its large 145mm diameter front lens, that remains bright and consistent over long distances.
The GLP GT-1 FL features our unique baseless design, wireless DMX control (optional), full 16 bit pan and tilt movement, full range dimming and shuttering capability, an in built battery for fixture setup, an auto sensing power supply and a low weight of just 25kg, in all giving a vastly versatile fixture for a wide range of applications.
Technical data
Lightsource
- Lamp type
- OSRAM SIRIUS HRI 440W
- Lifetime (Hours)
- 1.500 h
- Color temperature
- 7300 Kelvin
Optical system
- minimum Zoom (Deg)
- 3,5
- maximum Zoom (Deg.)
- 56,7
- Zoom Ratio
- 22:1
- Focus
- motorized
- 2m - infinite
- Beam Mode
- 3,5°
Movement
- Resolution
- 8 - 16 Bit
- Position Feedback
- yes
- Pan (Degrees)
- 640°
- Tilt (Degrees)
- 262°
Control
- Control Modes
- Normal
- Display
- illuminated graphic LCD
- intuitive touch wheel control
- Self charging buffer battery
- Automatic orientation of the display
- Protocol
- USITT DMX-512
- RDM
- Wireless
- Lumenradio CRMX DMX/RDM (optional)
- RDM
- Bidirectional communication
- Cooling
- temperature controlled
- overheating protection
Effects
- Dimmer
- 0-100% electro mechanic
- Shutter
- electromechanical
- Effect Wheel
- interchangeable
- rotating and indexable
- Frost
- yes
- Prism
- 3-way
- 4-way
- 8-way
- slow to very fast rotation
- Gobo Wheel 1
- 8 Gobos
- rotatable and indexable
- interchangeable
- Dicroic color gobos
- Gobo Wheel 2
- 14 fixed metal gobos plus 6 different pinholes
- Color temperature filter
- mechanical
- 2.500 K
- 9.000 K
- Color wheel
- 11 dichroic color filters
- CTB Filter
- CTO Filter
- Color mixing
- CMY color mixing
Connectors
- Signal connection
- XLR 5-Pin
- XLR 3-Pin
- In/Out
- Power Input
- Neutrik PowerCON
Shipping
- Single fixture
- cardboard
- Tourpack
- 2-way
- Flight Case
- Omega-Brackets
Housing Colors
- Standard colors
- black
- Optional
- Special colors on request
Dimensions & Weight
- Length
- 229 mm / 9 in
- Width
- 472 mm / 18,6 in
- Height (head vertical)
- 618 mm / 24,3 in
- Weight
- 25 kg / 55 lbs
Downloads
CAD
- GT-1 CAD - 3D ( zip | 8.19 MB)
- GT-1 WYSIWYG ( zip | 1.35 MB)
- GT-1 Dimensions ( pdf | 12.26 MB)
- GT-1 Vectorworks ( zip | 418.88 KB)
DMX
- GT1 DMX Channel Index EN r5 ( pdf | 278.23 KB)
Manual
- GT-1 Manual V0.5 EN ( pdf | 2.54 MB)
Photometrics
- GT-1 Photometric ( zip | 3.23 KB)
GT-1 FL
impression X4 Bar 20
The impression X4 Bar 20 is a high performance batten that incorporate 15 Watt RGBW LEDs packed tightly to give a full line of light. The X4 Bar 20 uses 20 LEDs. High quality optics ensure a smooth, homogenized output across the batten through a broad pallet of pastel and saturated colors, complimented by GLP’s exceptional dimming which ensures that there is no color shift, just smooth even fades. DMX control offers full pixel mapping capabilities, whilst both units feature a 7:1 zoom ranging from 7 to 50 degrees, giving effects from a narrow angle light curtain to a wide angle washlight.
The X4 Bar also features a motorized tilt, for fast refocussing or to be used to add more dynamics to the output beam. Multiple X4 Bar units can be aligned, and maintain consistent pixel spacing between adjacent units.
Technical data
LED-Source
- LED-Type
- Osram Ostar
- Lifetime (Hours)
- 50.000
- LED count
- 20
- LED Colors
- RGBW
Optical system
- minimum Zoom (Deg)
- 7
- maximum Zoom (Deg.)
- 50
Movement
- Resolution
- 8 - 16 Bit
- Position Feedback
- yes
- Tilt (Degrees)
- 210°
Control
- Control Modes
- Compressed
- HighRes
- Pixel-Mapping
- Display
- illuminated graphic LCD
- Self charging buffer battery
- Protocol
- USITT DMX-512
- RDM
- RDM
- Bidirectional communication
- Cooling
- temperature controlled
- overheating protection
Effects
- Dimmer
- 0-100% electronic
- Shutter
- max. 10 Hz
- Color temperature filter
- electronic
- 2.500 K - 10.000 K
- Internal Effects
- LED Macro Effects
- Color presets
Connectors
- Signal connection
- XLR 5-Pin
- In/Out
- Power Input
- Neutrik PowerCON
- In/Out
Shipping
- Single fixture
- cardboard
- Tourpack
- 4-way
- Flight Case
- Omega-Brackets
- Asymmetrical Filter
Housing Colors
- Standard colors
- black
- Optional
- Special colors on request
Dimensions & Weight
- Length
- 100 mm / 3.9 in
- Width
- 1000 mm / 39.4 in
- Height (head vertical)
- 240 mm / 9.4 in
- Weight
- 16 kg / 35.3 lbs
Downloads
Manual
- impression X4 Bar 20 User Manual v1.8 EN ( pdf | 1.69 MB)
- impression X4 Bar 20 Programming Guide ( pdf | 246.25 KB)
DMX
- impression X4 Bar 20 DMX Layout v1.6 EN ( pdf | 1.11 MB)
CAD
- impression X4 Bar 20 3D DWG ( zip | 24.58 MB)
- impression X4 Bar 20 Dimensions ( pdf | 777.44 KB)
- impression X4 Bar 10/20 Vectorworks 2014 ( zip | 520 KB)
impression X4 Bar 20
impression X4 XL
The incredible light output of 55 high power RGBW LEDs (each rated at 15W) coupled with the highly efficient 7 - 50° zoom lense make the impression X4 XL unique and unmatched in the lighting market.
The optics, originally from the approved impression X4, gives a well defined beam, complete with hard edge in the lower zoom range whilst remaining absolutely homogenous and soft edged at wider angles. Another highlight is the stylish housing with a baseless design.
RGBW color mixing, variable CTO and a finely tuned dimming curve are standard in the impression X4 XL. The impression X4 XL features individually controllable LEDs allowing a range of different patterns to be created and displayed on the front lenses, including arrows, numbers, letters and much more, either from stock patterns or through user created patterns.
Technical data
LED-Source
- LED-Type
- Osram Ostar
- Lifetime (Hours)
- 50.000
- LED count
- 55
- LED Colors
- RGBW
Optical system
- minimum Zoom (Deg)
- 7
- maximum Zoom (Deg.)
- 50
Movement
- Position Feedback
- yes
- Pan (Degrees)
- 660°
- Tilt (Degrees)
- 260°
Control
- Control Modes
- Normal
- Compressed
- HighRes
- Display
- illuminated graphic LCD
- Protocol
- USITT DMX-512
- Cooling
- temperature controlled
- overheating protection
Effects
- Dimmer
- 0-100% electronic
- Shutter
- max. 10 Hz
- Color temperature filter
- electronic
- 2.500 K - 10.000 K
- Internal Effects
- LED Macro Effects
- Color presets
Connectors
- Signal connection
- XLR 5-Pin
- XLR 3-Pin
- In/Out
- Power Input
- Neutrik PowerCON
Shipping
- Single fixture
- cardboard
- Tourpack
- 2-way
- Flight Case
- Omega-Brackets
Housing Colors
- Standard colors
- black
- Optional
- Special colors on request
Dimensions & Weight
- Length
- 550 mm / 21.6 in
- Width
- 200 mm / 8.7 in
- Height (head vertical)
- 515 mm / 20.2 in
- Weight
- 24 kg / 52.9 lbs
Downloads
impression X4 XL
X4 atom
The GLP X4 atom has been designed from the ground up to be as versatile a light as possible in a number of different ways.
With its small body, designed to fit subtly into the tightest spaces yet give big coverage, the X4 atom is a new everyday fixture for static sources. From television and film, to corporate events, set lighting and special events. From concert touring stages and truss systems to architectural elements, the X4 atom has a use everywhere.
The X4 atom is fitted with the same high output quad color LED source that we use across the X4 range, giving it a bright, full spectrum output from its compact size.
But the X4 atoms small size houses a lot more, starting with a 9 to 1 zoom ratio that goes from a wide 34° wash down to a tight 3.5° beam for pinpoint accuracy and great mid-air effects.Something which no other fixture offers and all the while maintaining a clean output and even distribution of color and intensity.
But it doesn’t stop there. As versatility is the key, we made the housing IP 65 rated allowing it to be used on events and shows all year round, indoors or out. And for times when one X4 atom just isn’t enough, we’ve created a clever and fast interlock system that allows fixtures to easily be coupled together.
The standard hanging yoke is easily removed and you can quickly assemble pairs, quads, lines and grids of fixtures in any configuration that you need – and still keep individual control of each atom head creating stunning displays.
The X4 atom runs from an external power supply that feeds each fixture via an industry standard 4 pin XLR color changer cable, tapping into existing infrastructure and not trying to reinvent things again and reducing the overall environmental impact of the atom.
Technical data
LED-Source
- LED-Type
- Osram Ostar
- Lifetime (Hours)
- 50.000
- LED count
- 1
- LED Colors
- RGBW
- CwWw
Optical system
- minimum Zoom (Deg)
- 3,5
- maximum Zoom (Deg.)
- 34
Control
- Protocol
- USITT DMX-512
- Cooling
- temperature controlled
- overheating protection
Effects
- Color temperature filter
- electronic
- 2.500 K - 10.000 K
Connectors
- Signal connection
- XLR 4-Pin
Shipping
- Single fixture
- cardboard
- Tourpack
- 12 pcs. X4 atom and 1 PSU
- 12 pcs. 4-Pin cable 5m
Housing Colors
- Standard colors
- black
Dimensions & Weight
- Length
- 127 mm
- Width
- 127 mm
- Height (head vertical)
- 196 mm
- Weight
- 1,8 kg
Downloads
Manual
- X4 atom Head manual v1.0 EN ( pdf | 1.84 MB)
- X4 Atom Free Connect 1.2_de ( pdf | 637.56 KB)
- X4 Atom Free Connec 1.2_en-us ( pdf | 632.79 KB)
CAD
- X4 atom Vectorworks 2014 -2016 ( zip | 3 MB)
- X4 atom Dimensions ( pdf | 159.28 KB)
- X4 atom Head 3D DWG ( zip | 3.45 MB)
Fixture Libraries
- X4 atom Creation Fixture ( zip | 854 B)
X4 atom
impression X4 L
The impression X4 L offers a full package of a pixel mapping LED luminaire with front beam rotation, a fast 7:1 zoom range, wide color pallet and high output from its 37 LED sources which are each rated at 15 Watts and feature RGBW color technology.
The impression X4 L also offers smooth full range dimming, electronic strobe functionality, variable color temperature correction, 16 bit pan and tilt control, all in the sleek baseless design that has become a part of the GLP impression product range.
Technical data
LED-Source
- LED-Type
- Osram Ostar
- Lifetime (Hours)
- 50.000
- LED count
- 37
- LED Colors
- RGBW
Optical system
- minimum Zoom (Deg)
- 7
- maximum Zoom (Deg.)
- 50
- Beamshape
- motorized
Movement
- Resolution
- 8 - 16 Bit
- Position Feedback
- yes
- Pan (Degrees)
- 660°
- Tilt (Degrees)
- 250°
Control
- Control Modes
- Normal
- Compressed
- HighRes
- Pixel-Mapping
- Display
- illuminated graphic LCD
- Self charging buffer battery
- backlit buttons
- Protocol
- USITT DMX-512
- RDM
- RDM
- Bidirectional communication
- Cooling
- temperature controlled
- overheating protection
Effects
- Dimmer
- 0-100% electronic
- Shutter
- max. 25 Hz
- Color temperature filter
- electronic
- 2.500 K - 10.000 K
- Internal Effects
- LED Macro Effects
- Color presets
Connectors
- Signal connection
- XLR 5-Pin
- In/Out
- Power Input
- Neutrik PowerCON
Shipping
- Single fixture
- cardboard
- Tourpack
- 4-way
- Flight Case
Housing Colors
- Standard colors
- black
- Optional
- Special colors on request
Dimensions & Weight
- Length
- 430 mm / 16,9 in
- Width
- 185 mm / 7,3 in
- Height (head vertical)
- 530 mm / 20,9 in
- Weight
- 17 kg / 37,5 lbs
Downloads
DMX
- impression X4 L DMX EN ( pdf | 1.65 MB)
Manual
- impression X4 L Manual v1.3 EN ( pdf | 2.75 MB)
- impression X4 L Manual v1.3 DE ( pdf | 2.52 MB)
Firmware
- impression X4 L V1.12 2018-07-04 ( zip | 65.22 KB)
impression X4 L
JDC1
When you look for a strobe, you look for power and the JDC1 from GLP delivers power in excess through a versatile and highly creative design, the likes of which has never been seen before.
The JDC1 contains a traditional single tube element with an incredible clear, bright white output and combines that with a surrounding full face of RGB LED power, utilizing 1.320 high quality LED’s. The possibilities are endless as these two elements have independent control and can be used as separate pieces, or combined for stunning effects.
Along with working as a powerful strobe light, both the tube and the full face sections can be run continuously for high output blinder and wash light effects, which never reduce output or have thermal cutouts.
To give even more functionality, the RGB face can be divided into 12 separate ‘plate’ sections, and additionally the bright white tube also can be divided into 12 sections and then the whole array can be fully pixel mapped through any standard controller.
The JDC1 also features dynamic movement with a 16 bit, 185° tilt range, allowing you to place effects exactly where and when you want them to be – and get the most possible power and impact.
The JDC1 is a whole new class of strobe that offers an incomparable feature set that goes way beyond the definition of a hybrid.
The JDC1 is hybrid redefined.
Technical data
Strobe Panel LEDs
- LED Type
- Osram LRTB GVTG
- LED Count
- 1320
- LED Colors
- RGB
- LED Segments
- 12 (2 x 6)
Strobe Tube LEDs
- LED Type
- CREE XP L LED
- LED Count
- 216
- LED Colors
- Cold-White
- LED Segments
- 12
Movement
- Resolution
- 8 - 16 Bit
- Position Feedback
- yes
- Tilt (Degrees)
- 185°
Control
- Control Modes
- Compressed
- HighRes
- Pixel-Mapping
- Display
- illuminated graphic LCD
- Self charging buffer battery
- Protocol
- USITT DMX-512
- RDM
- RDM
- Bidirectional communication
- Cooling
- temperature controlled
- overheating protection
- Transceiver
- RS-485
- Receiver
- Opto-isolated RS-485
- Software update
- DMX link
Connectors
- Signal connection
- XLR 5-Pin
- In/Out
- Power Input
- Neutrik powerCON TRUE1
- In
Shipping
- Single fixture
- cardboard
- Tourpack
- 4-way
- Flight Case
- Omega-Brackets
Housing Colors
- Standard colors
- black
Dimensions & Weight
- Length
- 150 mm / 5.9 in
- Width
- 390 mm / 15.3 in
- Height (head vertical)
- 251 mm / 9.8 in
- Weight
- 11,6 kg / 25.6 lbs
Downloads
Manual
- JDC1 User Manual EN v3.0 SW1.70-68-18 ( pdf | 3.33 MB)
DMX
- JDC1_DMXLayout_SW1.70-68-18 ( pdf | 2.32 MB)
CAD
- JDC1 3D DWG ( zip | 86.8 KB)
- JDC1 Vectorworks ( zip | 161.47 KB)
Tender Texts
- Tender texts DE EN ( zip | 12.02 KB)
Firmware
- JDC-1 Main V1.71 - New Aggressive Mode ( zip | 94.79 KB)
JDC1
Force 120
Practical and useable in many applications, the Force 120 features is a high speed, variable direction fan unit with internal RGB LED lighting. It incorporates high torque motor technology for fast movement and quick speed changes.
Coupled with internal lighting, this unit is multi-use for dramatic effect, a fun addition, as a unique scenic element, or just being used to move air in a rugged versatile housing The Force 120 measures just over 4.5ft square. The large diameter variable speed fan, which can run at speeds as low as 30 rpm, right up to 750 rpm, is designed to create stunning scenic effects, or be used as a great air mover. Internally, it features bands of LED tape which light the actual fan blades and can be controlled with differing levels of density, allowing multi-color projection onto the blades, or alternatively to turn them into a single striking element.
The Force 120 has an auto sensing power input, a sturdy construction, built in transport wheels and multiple rigging points, and secondary safety attachment points.
Technical data
Stage Effects
- Max. Fan Speed (U/Min)
- 750
- Min. Fan Speed (U/Min)
- 30
Control
- Control Modes
- Normal
- Display
- illuminated graphic LCD
- Protocol
- USITT DMX-512
Connectors
- Signal connection
- XLR 5-Pin
- In/Out
- Power Input
- Neutrik PowerCON
Shipping
- Single fixture
- cardboard
Housing Colors
- Standard colors
- black
Dimensions & Weight
- Length
- 40 cm
- Width
- 140 cm
- Height (head vertical)
- 140 cm
- Weight
- 94 kg /
Downloads
DMX
- GLP Force 120 DMX Sheet ( pdf | 152.28 KB)
Fixture Libraries
- GrandMA GLP Force 120 ( zip | 2.31 KB)
- HOG GLP Force 120 RevA ( zip | 71.6 KB)
Manual
- Force 120_1.5_en-us ( pdf | 674.46 KB)
- Force 120_1.5_de ( pdf | 676.82 KB)
Force 120

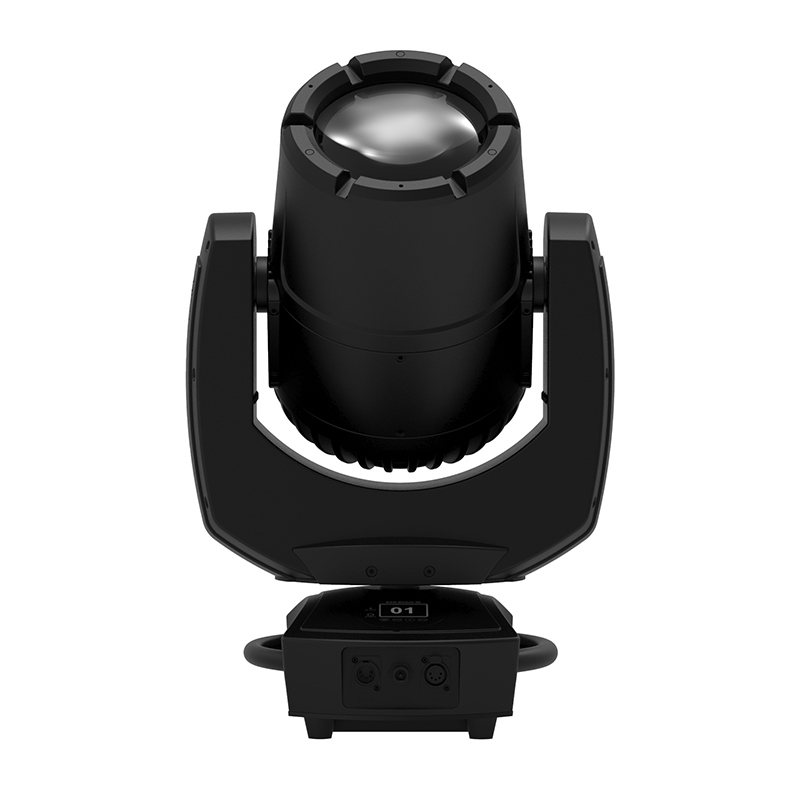

FUSION by GLP’s Exo Beam is a powerful IP65 rated moving head with a beam angle of just 0.1°, generating a sharp beam that can be seen for long distances, using its’ highly efficient 90W 7500K white light LED engine.
FUSION by GLP’s Exo Beam is a powerful IP65 rated moving head with a beam angle of just 0.1°, generating a sharp beam that can be seen for long distances.
The Exo Beam features a single, powerful and highly efficient 90W, 7500K white light LED engine.
With its’ 160mm front lens, the fixture features an incredible 0.1° beam angle and a field angle of just 1° along with incredibly fast pan and tilt movements, combining to give incredible mid air effects – either indoor, or out.
The Exo Beam comes equipped with a range of additional effects, including two independent rotating prisms that can be used individually, or combined together for stunning aerial effects; a hybrid gobo wheel with both static and rotating gobos; a color wheel with 14 colors; as well as motorized focus, variable speed shutter and 16 bit pan and tilt movement.
The Exo Beam can operate anywhere in the world, and in any orientation with wireless DMX control available as an optional extra. The fixture has a robust die cast housing which combined with the IP65 rating make the Exo Beam ready for even the worst of outdoor conditions.
SPECIFICATIONS
Control
- DMX 512 protocol
- 4 button OLED display
Power
- Auto sensing 100-240 VAC / 50-60Hz
- Neutrik TRUE1 in and out
- 185 Watt (max.)
Thermal Specifications
- Max. ambient temperature 113°F (45°C)
- Min. ambient temperature -4°F (-20°C)
Connectors
- XLR 5-pin signal connection
- Neutrik TRUE1 power input
Mounting Options
- 2 pairs of 1/4 turn locks
- Safety wire attachment point
- Built in rubber feet
- Operates in any orientation
Dimensions
- L x W x H
- 13.9″ x 14.9″ x 20.6″
- 35.4 cm x 37.9 cm x 52.4 cm
Light Source
- 1x 90W White LED, rated at 7500K
- 50,000 lifetime hours
Optical System
- 0.1° beam angle
- 1° field angle
- Multiple dimmer curves
Effects
- Magnetic head mounts
- Anti-fog system
- Single color wheel with 14 fixed colors, plus open
- Single ‘Hybrid’ gobo wheel with rotating and fixed gobos
- 2 Prisms – 6 way linear and 8 way radial. Prisms can be added individually, or combined together for greater effects
- Continuous, variable dimming
- Motorized focus
- Variable speed shutter
- 16 bit pan (630°) / tilt (267°) movement, with position feedback
FUSION EXO BEAM

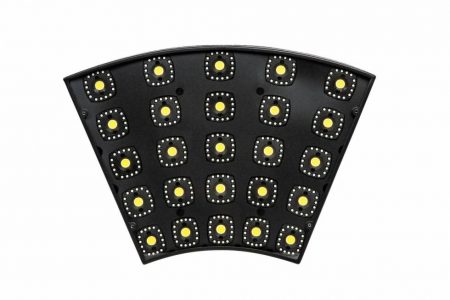

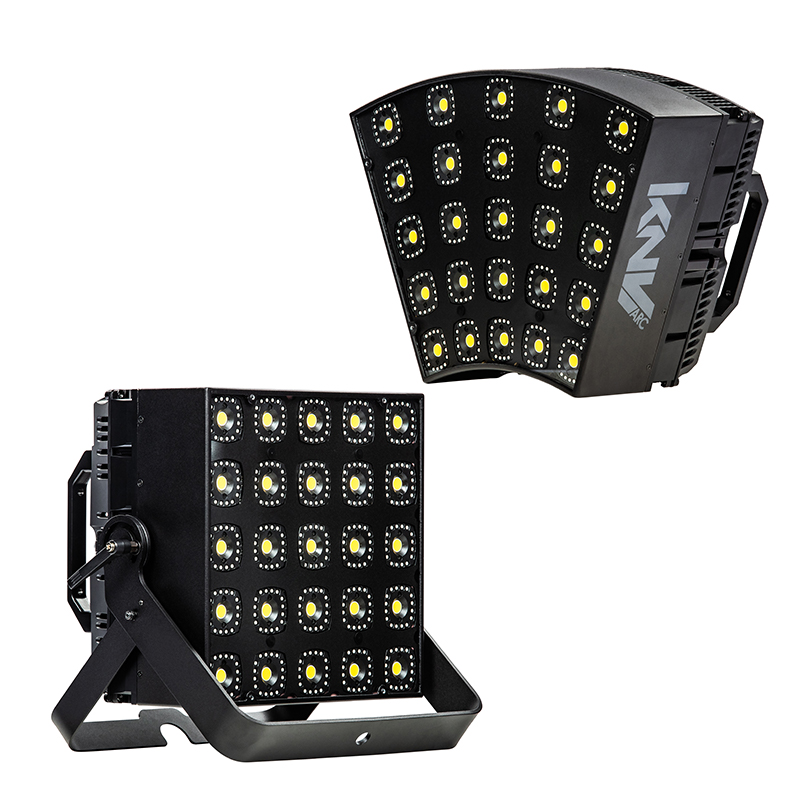

The KNV system from GLP brings a whole new dynamic to entertainment lighting, groundbreaking in both design and functionality. The two variants, the KNV Cube and the KNV Arc, work as independent units or combine seamlessly together. Providing a whole new level of versatility and freedom in design, all in an outdoor rated housing.
Light Source
- 25 hyper bright 30 watt, white LED, each surrounded by 16 RGB LEDs
- 50,000 lm
Control
- Protocols: DMX 512, ArtNet, sACN
- Mode: 7, 10, 23, 35, 40, 56, 102, 202
- Variable PWM, up to 38khz
Effects
- 16 bit RGBW color
- 16 bit electronic dimming
- Variable strobe: intensity, flash rate, flash duration
Connectors
- Power: Neutrik True1 input and output
- Data: Neutrik Ethercon input and output
Operating Conditions
- IP54 rated
- Maximum ambient temperature: 113°F (45°C)
Mounting Options
- Floor stand
- Hanging bracket
- Any orientation

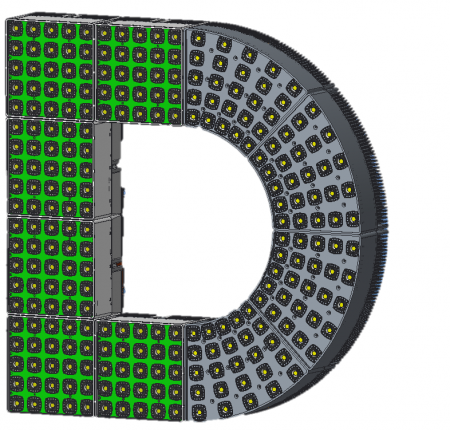

- Frameless design allows units to be seamlessly coupled together.
Shipping
- Cardboard box
- Flight cased tourpack
Housing Colors
- Standard color is black
- For other colors please contact sales department
Dimensions
- (L x W x H)
- KNV Cube: 7.2″ x 9.8″ x 9.8″ (18.3 cm x 25 cm x 25 cm)
- KNV Arc: 7.1″ x 15″ x 10.5″ (18cm x 38cm x 26.6 cm)
- With yoke attached: 7.1″ x 15″ x 10.5″ (18 cm x 38 cm x 26.6 cm)
Net Weight
- KNV Cube: 20.5 lbs ( 9.3 kg)
- KNV Arc: 21.3 lbs (9.7 kg)
