LINE ARRAY
Top Rated

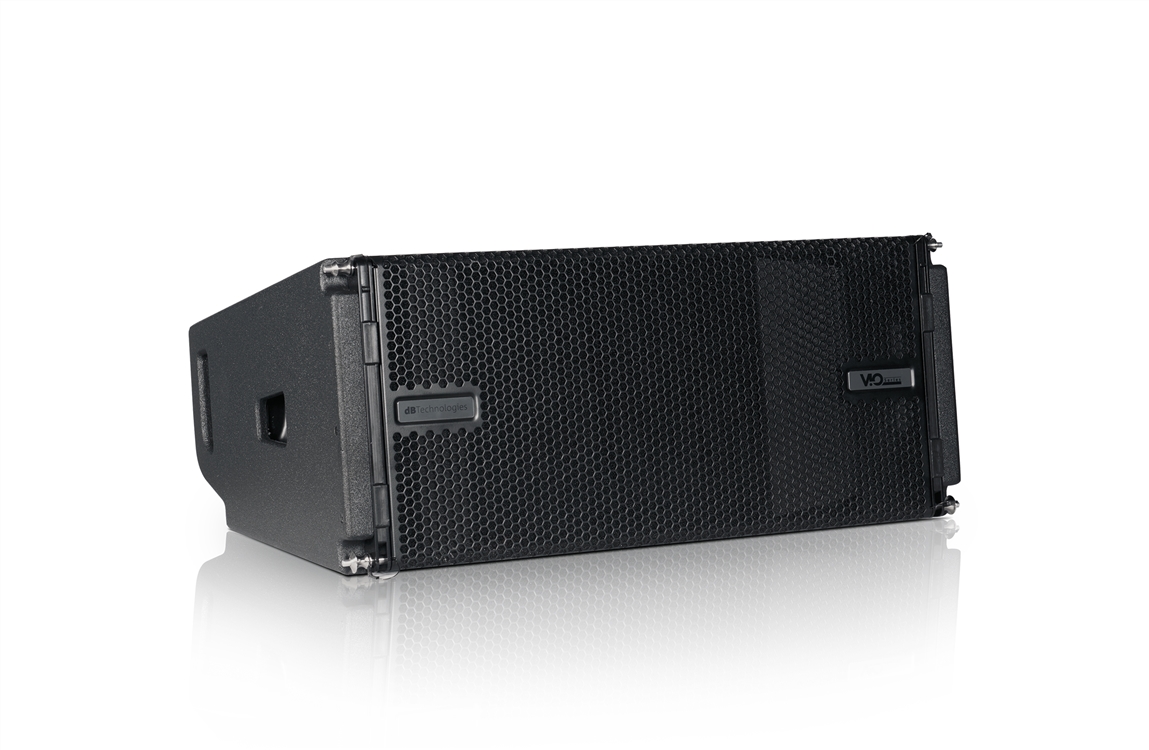

VIO L210
As a result of many years’ experience, VIO L210 reaches the next level among dBtechnologies’ speaker range aimed at larger sound reinforcement applications. A unique internal acoustic design and advanced sound processing merge to deliver outstanding performances in terms of sound pressure, coverage coherence, intelligibility and sound definition.
UNIQUE ACOUSTIC DESIGN COMBINING LONG THROW AND DETAILED AUDIO PERFORMANCE

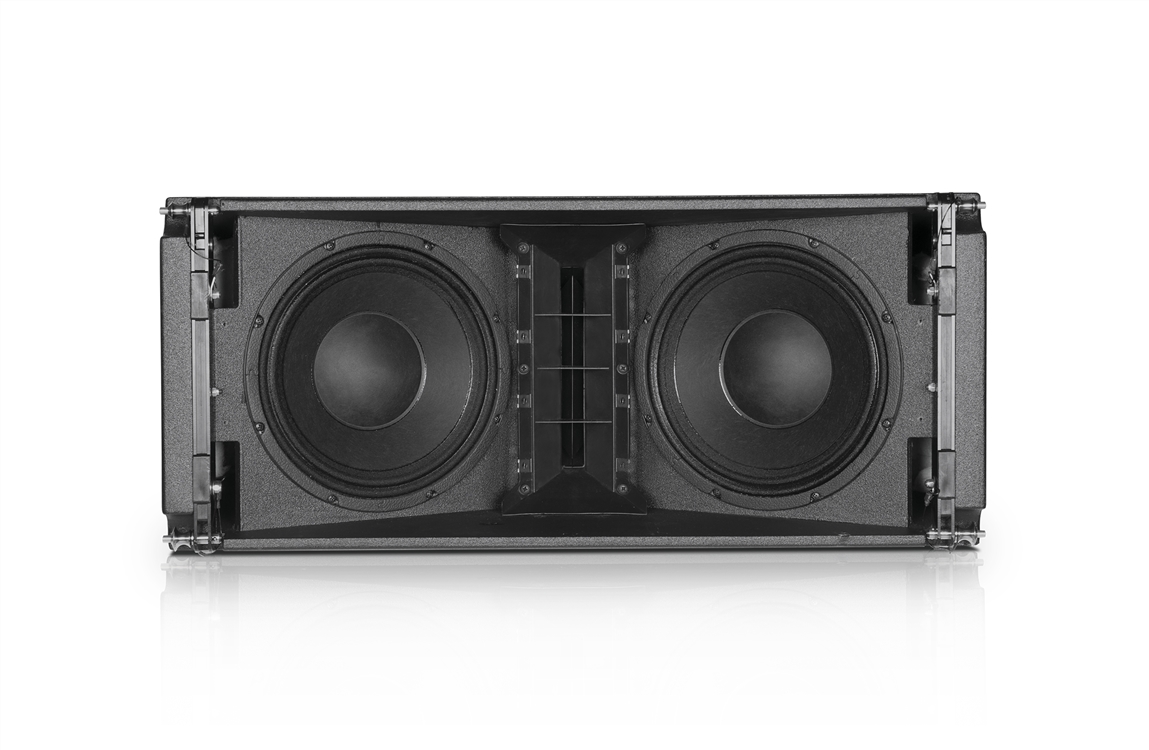

VIO L210's premium low-freq transducers, positioned in a V form and sealed in a bass reflex wooden enclosure, have been custom designed to improve efficiency and to last in high stress conditions, providing an accurate transient response and an extended low-end reproduction.
One single 3” voice coil compression driver (1.4” exit throat) accurately delivers high frequencies. A brand new waveguide contributes to create a cylindrical wavefront, allowing a very precise high-frequency directivity control, much to the advantage of the system’s throw distance.
The acoustic enclosure is completed by two massive aluminium phase plugs located in front of both woofers which acts as a prosecution of the constant directivity high-frequency waveguide.
Each phase plug features 26 diamond-shaped holes aimed at reducing any interference within the crossover zone while improving frequency and transient response.
ADVANCED DSP PAIRED WITH NOTABLE EFFICIENCY
The module features a highly efficient Class D Digipro G3 900 W RMS amplifier which is perfectly capable of achieving 135 dB SPL.
A perfectly coherent coverage is granted even at a long distance thanks to advanced sound processing with FIR filters.

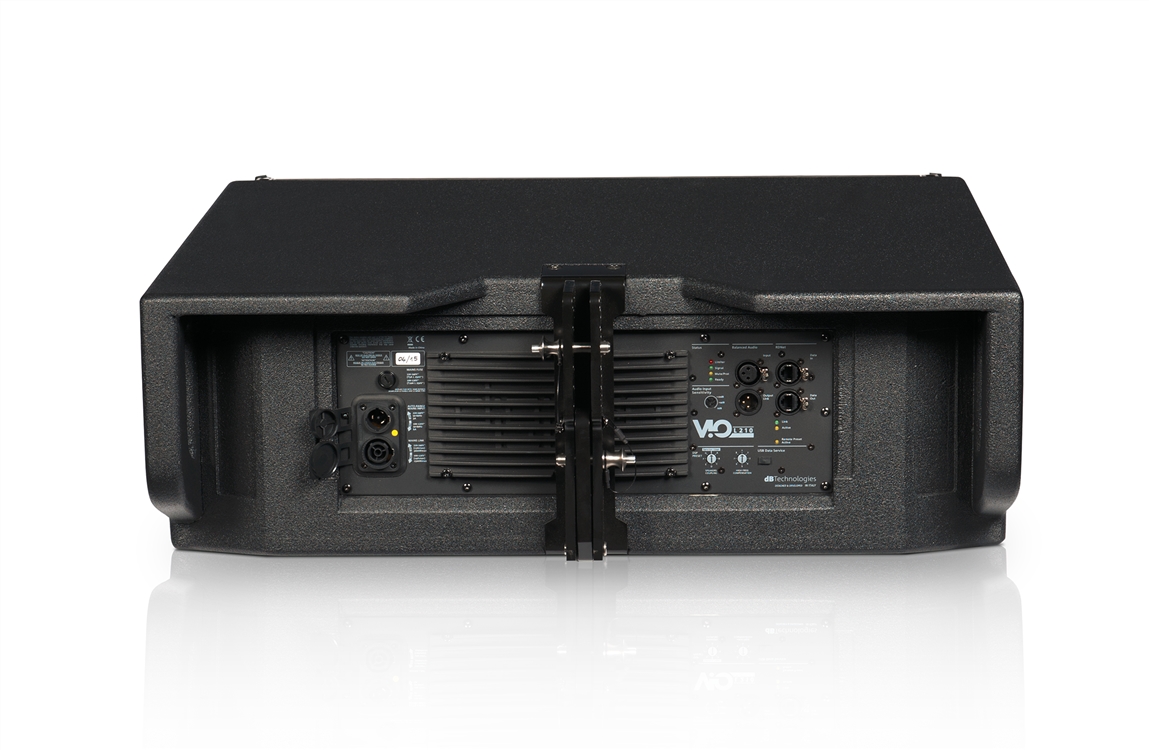

The pre-amp module is also equipped with a digital optical isolation which avoids audio coupling, preventing any noise created by potential differences.
SMART RIGGING HARDWARE & ACCESSORIES TO SPEED UP SET UP OPERATIONS
The VIO L210 comes with a built-in 3-point rigging system allowing a smooth and fast set up of the system. The 2 front links easily connect the modules from every angle. The back central rigging strand is equipped with a hook type link to set the relative splay angles determined via the prediction software dBTechnologies Composer. While lifting up the array, the rigging strand will automatically block the systems at the preset angles.
FEATURES
- 2 WAY ACTIVE LINE ARRAY SYSTEM
- NETWORK READY WITH AN INTEGRATED RDNET PORT
- NEWLY DESIGNED WOODEN ENCLOSURE COATED WITH POLYUREA
- SMOOTH CONFIGURATION AND SET UP
- EXCLUSIVELY DESIGNED WAVEGUIDE
- ALUMINIUM PHASE PLUGS
- ADVANCED DSP WITH FIR FILTERS
- LIGHTWEIGHT NEODYMIUM MAGNETS
- ON-BOARD DOUBLE ROTARY EQ CONTROL SYSTEM
VIO L210

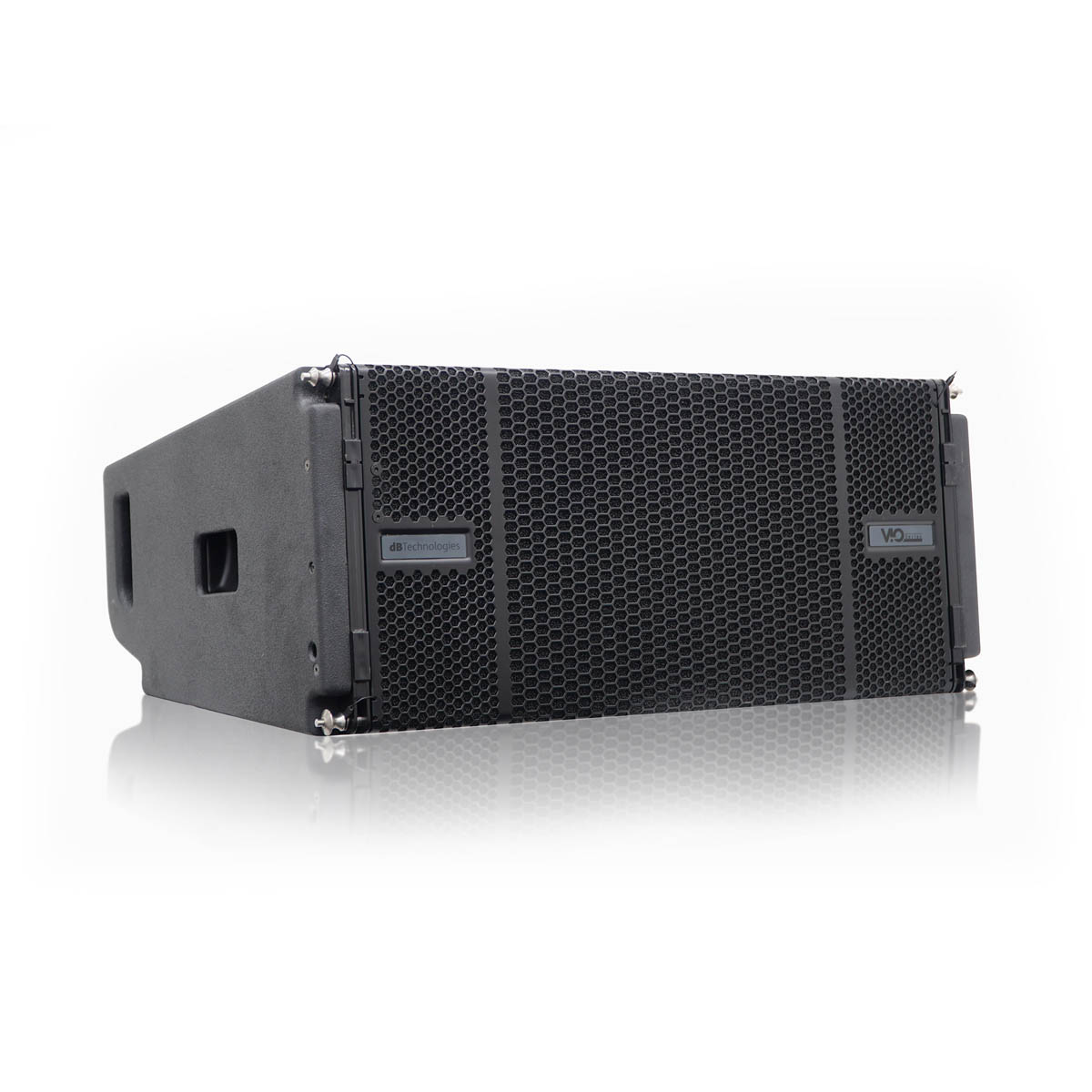

Astonishing sound pressure in one of the most compact VIO line array systems. VIO L1610 is a self-powered line array system that combines advances of VIO terchnology with an enhanced versatility.
A 3-WAY SYSTEM WITH A SYMMETRIC DESIGN
VIO L1610 is a three-way active line array system, entirely equipped with neodymium components:
2x10" woofers (2.5” v.c.), providing an extended LF reproduction, interact with a coaxial neodymium component (4” MF plus a 2,5” v.c. HF compression driver) mounted on an exclusively designed waveguide.
This unique coaxial symmetric acoustic design results into the most accurate transient reproduction, which enables VIO L1610 to deliver the most detailed and homogeneous audio performance.
In facts, the coaxial component not only allows an extended low end reproduction of the MF, but guarantees a perfect off-axis coherence alongside with all the benefits coming from woofers' direct radiation, much to the advantage of the system’s headroom.
VIO SERIES' COMPATIBILITY
Just like any member of VIO family, VIO L1610 has been designed keeping in mind complete compatibility among VIO systems.
Although its remarkable audio performance makes VIO L1610 a powerful yet compact main PA system, both its acoustic and mechanical design makes it the perfect downfill for large VIO L212 systems.
TF-VIO2 adaptor allows to easily rig VIO L1610 modules under a VIO L212 array.
COMPLETE NETWORKABILITY
VIO L1610's amp module Digipro G4 comes with a modular slot for expansion cards: as a default, VIO L1610 is equipped with dBTechnologies RD-Net card for real time remote control via Aurora Net software. Nevertheless, the system is ready for upgrades with Audinate Dante™ protocol for digital audio stream as well as well as real time control purposes.
As a support for networking purposes, each VIO L1610 cabinet is equipped with Near Field Communication (NFC™) system and a frontal LED used to recognize each single module within the remote control software Aurora Net.
ULTIMATE AMP TECHNOLOGY
Each VIO L1610 acoustic engine is driven by a Digipro G4® Class-D amplifier module featuring 1600 W RMS along with the utmost acquisitions in dBT’s amp technology.
The system takes advantage of a one-of-a-kind low latency processing resulting from its powerful DSP featuring linear phase FIR filters.
On-board controls (2 rotary encoders) allows DSP presets for Speaker Coupling and High Frequencies compensation.
The amp also allows users to run a test on electronics and transducers before, during and after use: the most useful system test ensuring real time control over the entire PA’s health and tour-grade reliability.
VIO'S SMART RIGGING SYSTEM
VIO L1610 comes with VIO series’ peculiar 3-point rigging system allowing a smooth and fast set up of the system. The 2 front links easily connect the modules.The back central rigging strand is equipped with a ring type link allowing user to set the relative splay angles ranging from 1° to 10° thanks to 1 single pin. Splay angles can be set directly in the dedicated transport cart DT-VIOL210L which houses 4 modules. While lifting up the array, the rigging strand will automatically block the preset angles with no heavy lifting required. The flying frame DRK-210 allows smooth flying operations and system lifting.
VIO L1610

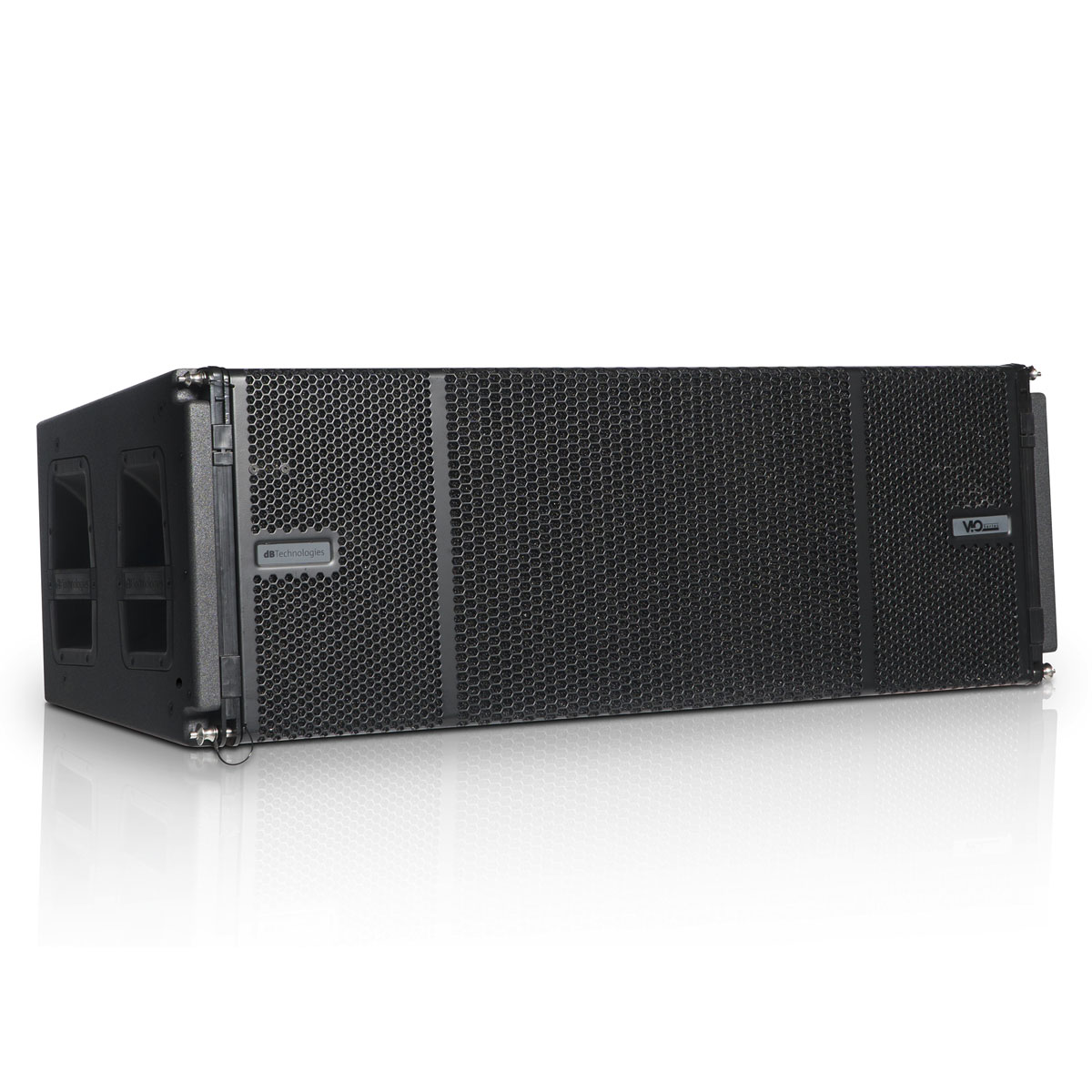

VIO L212 is the first dBTechnologies’ full scale line array module designed for large touring sound reinforcement applications, concurrently providing mighty output capability and optimized coverage behaviour. dBTechnologies was able to pack great sound pressure levels into one of the most compact and lightest active 2×12” line array systems.
TECHNICAL DATA
Speaker Type: 3-Way Active Line Array Module
ACOUSTICAL DATA
Usable Bandwidth [- 6 dB]: 55 – 18.600 Hz
Max SPL: One Unit: 142 dB
HF: 2 x 1.4”, 3” v.c. – Neodymium
MF: 4 x 6.5” , 2” v.c. – Neodymium
LF: 2 x 12”, 3” v.c. – Neodymium
Horizontal Directivity: 90°
Vertical Directivity: depends on array size and configuration
AMPLIFIER
Amplifier: 3200 W RMS [2x 1600 W RMS bi-amped Class-D Digipro® G4]
Cooling: Convection, Internal fan
Power Supply: Full-range SMPS with PFC (100V~-240V~, 50-60Hz)
PROCESSOR
Controller: DSP 32 bit
AD/DA Converter: 24 bit/96 kHz
Limiter: Dual Active Multiband Peak, RMS, Thermal
Processing (filters): FIR Linear Phase
VIO L212
dBTechnologies VIO-L208 Line Array Subwoofer System

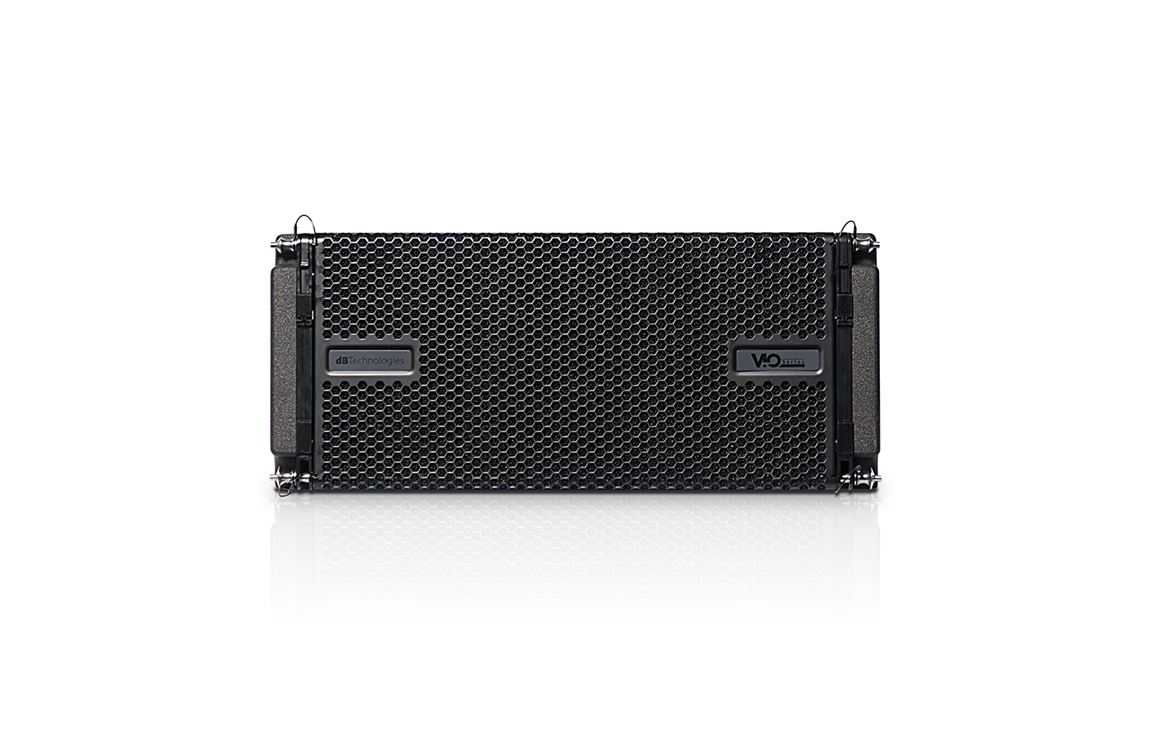

dBTechnologies VIO-L208 Line Array Subwoofer System is a 2-way active line array system equipped with 2X8” neodymium woofers and 1X1,4” neodymium compression driver (2.5” voice coil).
Offering lighter and faster rigging elements, featuring an unique acoustic design, combining long throw and detailed audio performance, the new dBTechnologies VIO-L208 Line Array Subwoofer System is both a powerful yet compact stand-alone line array system, and a fully compatible down-fill for VIO L210+ VIOL208 hybrid systems, completed by VIO S Active subwoofers.
The transducers are positioned behind an all-in-one panel which acts as a phase-plug and a HF horn. The waveguide behind this panel contributes to the creation of a cylindrical wavefront, much to the advantage of hi-freq throw distance. Each module of VIO L208 is driven by a Class-D Digipro G3 900W amp module with auto-range PSU.
A perfectly coherent emission is granted thanks to advanced sound processing with FIR filters. The pre-amp module is also equipped with a digital optical isolation, guaranteeing interference-free input signal.

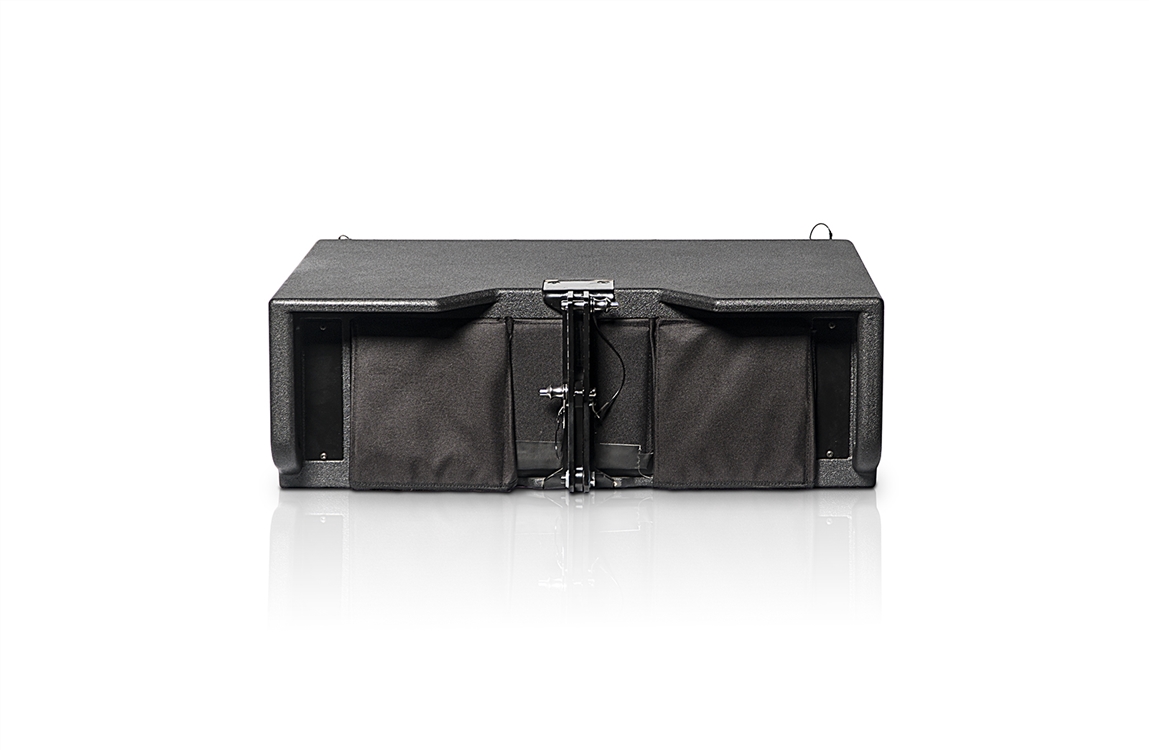

Just like larger VIO L210 system, VIO 208’s wooden enclosure comes with a built-in rigging system made for simplicity and speed: a back central rigging strand allows to set the relative splay angles, directly in the dedicated transport cart DT-VIOL208, able to house 4 modules plus 1 flying bar. While lifting up the array, the rigging strand will automatically block the systems at the preset angles with no need of heavy lifting.
The dedicated 3-point flying frame DRK 208 allows to set a precise inclination of the array and is ready to carry an optional inclinometer laser pointer. When not in use, the flybar can be easily stored in the transport cart.
AF-VIO1 accessory allows you to rig the module under a VIO S118 flyable subwoofer or, alternatively, to use VIO 208 as downfill in larger VIO L210 systems. The same accessory also serves as safety interface in stacked configuration on VIO subs.
A lighter accessory transition frame TF-VIO1 allows the installation of VIO L208 under flown VIO L210 only. VIO L210 features on board presets allowing users to process the system manually. Any preset can be easily changed remotely via Aurora Net control software.
Features:
- Designed for optimized acoustic and mechanical compatibility with vio L210
- New acoustic design featuring all-in-one phase plug and hf horn front panel
- Low-latency processing thanks to powerful dsp with linear-phase fir filters
- Fully compliance with aurora net remote control software
- DSP presets for maximum acoustic customization
- Built-in flying hardware allowing fast & easy set up and flying operations
TECHNICAL SPECIFICATIONS
- Speaker Type: 2-way Active Line Array Module
- Usable Bandwidth [- 6 dB]: 75 Hz - 20 KHz
- Frequency Response [+/- 3dB]: 85 Hz -18,1 KHz
- Max SPL: 133.5 dB
- HF: 1x1.4"
- Voice Coil HF: 2.5"
- Type HF: Neodymium
- LF: 2x8"
- Voice Coil LF: 2"
- Type LF: Neodymium
- Horizontal Directivity: 100°
- Vertical Directivity: Depends on array size and configuration
- Amp Technology: Digipro G3
- Amp Class: Class-D
- Power RMS: 900 W
- Peak Power: 1800 W
- Cooling: Convection
- Power Supply: 900 W SMPS with Auto-range PSU
- Controller: DSP 56 bit
- AD/DA Converter: 24 bit/48 KHz
- Limiter: Dual Active Peak, RMS, Thermal
- Processing (filters): FIR Linear Phase Filters
- Crossover Frequency LF-HF: 1000 Hz
- Signal Input: 1xXLR fem, Bal.
- Signal Output: 1xXLR male, Bal.
- Network RD: Net remote control RJ45 connector IN/OUT
- Mains Connections: 1x PowerCON TRUE1 In, 1x PowerCON TRUE1 Out
- Controls: 1xSpeakers Coupling (7 presets), 1x HF Compensation (8 presets), 1XInput Attenuation Rotary Switch
- Housing: Multiplex Plywood, Polyurea painted
- Handles: 1 x Side, 2 on back
- Rain Cover: Included
- Rigging Points: Integrated 3-point flying hardware
- Width: 600 mm (25.98 in)
- Height: 260 mm (10.23 in)
- Depth: 390 mm (15.35 in)
- Weight: 18.1 Kg (39.9 lbs)
VIO L208
