IS-SERIES
IS-SERIES
The IS-Series brings the rider acceptance and performance of Adamson's touring products to the world of integration. Leveraging proprietary technologies such as: Controlled Summation Technology, Advanced Cone Architecture and intuitive rigging solutions have ensured that the IS-Series meets with Adamson's high standards. Permanent installations present their own set of expectations, and architects and designers need a product which is purpose-built for them. Unobtrusively blending into the surrounding space, so that the architectural design remains the center of attention is paramount. Adamson has achieved this while delivering the same performance as the rest of the Adamson offering.
IS10

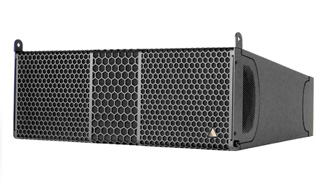

The IS10 is a 2-way, full range line array cabinet containing 2x ND10-LM Low-Mid drivers (2x 16 Ω) and an NH4TA2 1.5” exit compression driver (8 Ω). The critically optimized waveguide produces a slightly curved wavefront with a nominal dispersion pattern of 110° x 10° (H x V). The waveguide’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the far field. Patent-pending Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems.
The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two Speakon™ NL4 connectors (IS10), or barrier strips (IS10b). A plate and screw rigging system is recessed in the interior of the rear rigging fins for easy assembly.
The IS10 is suited to a wide variety of applications. Its full range capability (60 Hz) at reasonable levels qualifies for applications where sub is not required. Increased vertical coverage (10°) enables the IS10 to cover theaters, arenas and stadiums with reasonable speaker quantity. Other target applications include dance clubs, large meeting rooms and contemporary churches.
| Frequency Range (+/-3 dB) | 60 Hz - 18 kHz |
| Nominal Directivity (-6 dB) H x V | 110° x 10° |
| Maximum Peak SPL** | 141.3 dB |
| Components LF | 2 X ND10-LM |
| Components HF | Adamson NH4TA2 4” Diaphragm / 1.5” Exit Compression Driver |
| Nominal Impedance LF | 8 Ω |
| Nominal Impedance HF | 8 Ω |
| Power Handling (AES / Peak) LF | 700 / 2800 W |
| Power Handling (AES / Peak) HF | 160 / 640 W |
| Rigging |
Integrated Rigging System |
| Connection | 2x Speakon™ NL4 or Barrier Strips |
| Height Front (mm / in) | 300 / 11.8 |
| Height Back (mm / in) | 175 / 6.9 |
| Width (mm / in) | 737 / 29 |
| Depth (mm / in) | 518 / 20.4 |
| Weight (kg / lbs) | 25.6 / 56.5 |
| Supported Processing | Lake |
**12 dB crest factor pink noise at 1m, free field, using specified processing and amplification
ACCESSORIES
.png "IS10") |
IS10 & IS119 Support Frame (930-0028) | Suspension, transition and stacking frame for IS10 & IS119 enclosures |
 |
S-Series Extended Beam (930-0021) | Extension beam for larger angles and frame linking |
 |
S-Series Moving Point Extended Beam (930-0022) | Extension beam for larger angles. Moving point to achieve exact tilt angles |
 |
IS10 Micro Frame (930-0030) | Suspension frame to hang up to 4x IS10 |
 |
H-Clamp (932-0037) | Horizontal articulator for IS and S-Series frames |
IS10

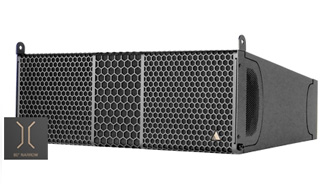

The IS10n is a 2-way, full range line array cabinet containing 2x ND10-LM Low-Mid drivers (2x 16 Ω) and an NH4TA2 1.5” exit compression driver (8 Ω). The critically optimized waveguide produces a slightly curved wavefront with a nominal dispersion pattern of 80° x 10° (H x V). The waveguide’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the far field. Patent-pending Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems.
The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum, and is equipped with two Speakon™ NL4 connectors (IS10n), or barrier strips (IS10nb). A plate and screw rigging system is recessed in the interior of the rear rigging fins for easy assembly.
The IS10n is suited to a wide variety of applications. Its full range capability (60 Hz) at reasonable levels qualifies for applications where sub is not required. Increased vertical coverage (10°) enables the IS10n to cover theaters, arenas and stadiums with reasonable speaker quantity. Other target applications include dance clubs, large meeting rooms and contemporary churches.
| Frequency Range (+/-3 dB) | 60 Hz - 18 kHz |
| Nominal Directivity (-6 dB) H x V | 80° x 10° |
| Maximum Peak SPL** | 141.3 dB |
| Components LF | 2 X ND10-LM |
| Components HF | Adamson NH4TA2 4” Diaphragm / 1.5” Exit Compression Driver |
| Nominal Impedance LF | 8 Ω |
| Nominal Impedance HF | 8 Ω |
| Power Handling (AES / Peak) LF | 700 / 2800 W |
| Power Handling (AES / Peak) HF | 160 / 640 W |
| Rigging |
Integrated Rigging System |
| Connection | 2x Speakon™ NL4 or Barrier Strips |
| Height Front (mm / in) | 300 / 11.8 |
| Height Back (mm / in) | 175 / 6.9 |
| Width (mm / in) | 737 / 29 |
| Depth (mm / in) | 518 / 20.4 |
| Weight (kg / lbs) | 25.6 / 56.5 |
| Supported Processing | Lake |
**12 dB crest factor pink noise at 1m, free field, using specified processing and amplification
ACCESSORIES
.png "IS10n") |
IS10 & IS119 Support Frame (930-0028) | Suspension, transition and stacking frame for IS10 & IS119 enclosures |
 |
S-Series Extended Beam (930-0021) | Extension beam for larger angles and frame linking |
 |
S-Series Moving Point Extended Beam (930-0022) | Extension beam for larger angles. Moving point to achieve exact tilt angles |
 |
IS10 Micro Frame (930-0030) | Suspension frame to hang up to 4x IS10 |
 |
IS10n

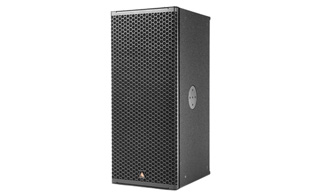

The IS10p is a 2-way, full range point source cabinet containing 2x ND10-LM Low-Mid drivers (2x 16 Ω) and an NH3-8 1.4” exit compression driver (8 Ω). The prolate spheroidal waveguides produce a nominal dispersion pattern of 70° x 40° (H x V), rotateable in 90° increments. The design of the waveguide ensures equal tonal balance when moving outside of the intended coverage pattern, ensuring a natural sound with no diffraction or lobing.
The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two Speakon™ NL4 connectors (IS10p), or barrier strips (IS10pb). A plate and screw rigging system is placed on four faces of the enclosure, with a multitude of accessories allowing the enclosure to be deployed seamlessly in a variety of applications.
The IS10p is suited to a wide variety of applications. Its full range capability (60 Hz) at reasonable levels qualifies for applications where sub is not required. The choice in dispersion pattern enables the IS10p to supplement larger systems as a fill cabinet when in use in theaters, arenas and stadiums. Other target applications include dance clubs, large meeting rooms and contemporary churches.
| Frequency Range (+/-3 dB) | 60 Hz - 18 kHz |
| Nominal Directivity (-6 dB) H x V | 70° x 40° Rotateable |
| Maximum Peak SPL** | 139 dB |
| Components LF | 2 X ND10-LM |
| Components HF | Adamson NH3-8 3” Diaphragm / 1.4” Exit Compression Driver |
| Nominal Impedance LF | 8 Ω (2 x 16 Ω) |
| Nominal Impedance HF | 8 Ω |
| Power Handling (AES / Peak) LF | 700 / 2800 W |
| Power Handling (AES / Peak) HF | 110 / 440 W |
| Rigging |
Integrated Rigging System |
| Connection | 2x Speakon™ NL4 or Barrier Strips |
| Height Front (mm / in) | 737 / 29 |
| Width (mm / in) | 326 / 12.85 |
| Depth (mm / in) | 442 / 17.4 |
| Weight (kg / lbs) | 21 / 46.3 |
| Supported Processing | Lake |
**12 dB crest factor pink noise at 1m, free field, using specified processing and amplification
ACCESSORIES
 |
IS10p Horizontal Bracket | The IS10p Horizontal Bracket affixes to the top and bottom rigging points of the IS10p, allowing for 180° of rotation |
 |
IS-Series Sight Mount | The IS-Series Sight Mount affixes to any rigging point on the IS7p or IS10p and offers multiple tilt angles in scenarios requiring discrete rigging solutions |
 |
IS-Series H-Clamp | The IS-Series H-Clamp affixes to any rigging point on the IS7p or IS10p and offers 360° of rotation in 10° increments. The H-Clamp attaches to a pipe like a standard C-Clamp would. |
 |
IS10p

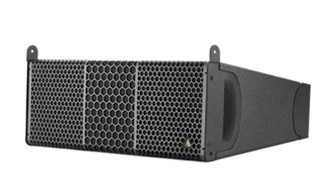

The IS7 is a 2-way, full range line array cabinet containing 2x ND7-LM8 Low-Mid drivers (2x 8 Ω) and an NH3-16 1.4” exit compression driver (16 Ω). The critically optimized waveguide produces a slightly curved wavefront with a nominal dispersion pattern of 100° x 12.5° (H x V). The waveguide’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the far field. Patent-pending Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems.
The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two Speakon™ NL4 connectors, or barrier strips available upon request. A plate and screw rigging system is recessed in the interior of the rear rigging fins for easy assembly.
The IS7 is suited to a wide variety of applications. Its full range capability (80 Hz) at reasonable levels qualifies for applications where no extensive sub energy is required. Increased vertical coverage (12.5°) enables the IS7 to cover small to mid-size venues with reasonable speaker quantity. Target applications include performing arts centers, live performance venues, sports venues, conference centers and houses of worship.
| Frequency Range (+/-3 dB) | 80 Hz - 18 kHz |
| Nominal Directivity (-6 dB) H x V | 100° x 12.5° |
| Maximum Peak SPL** | 138 dB |
| Components LF | 2 X ND7-LM8 |
| Components HF | Adamson NH3-16 3” Diaphragm / 1.4” Exit Compression Driver |
| Nominal Impedance LF | 16 Ω |
| Nominal Impedance HF | 16 Ω |
| Power Handling (AES / Peak) LF | 500 / 2000 W |
| Power Handling (AES / Peak) HF | 110 / 440 W |
| Rigging |
Integrated Rigging System |
| Connection | 2x Speakon™ NL4 or Barrier Strips |
| Height Front (mm / in) | 236 / 9.3 |
| Height Back (mm / in) | 122 / 4.8 |
| Width (mm / in) | 527 / 20.75 |
| Depth (mm / in) | 401 / 15.8 |
| Weight (kg / lbs) | 13.2 / 29 |
| Supported Processing | Lake |
**12 dB crest factor pink noise at 1m, free field, using specified processing and amplification
ACCESSORIES
.png "IS7") |
IS7 & IS118 Support Frame (930-0026) | Suspension, transition and stacking frame for IS7 & IS118 enclosures |
 |
S-Series Extended Beam (930-0021) | Extension beam for larger angles and frame linking |
 |
S-Series Moving Point Extended Beam (930-0022) | Extension beam for larger angles. Moving point to achieve exact tilt angles |
 |
IS7 Micro Frame (930-0029) | Suspension frame to hang up to 8x IS7 |
 |
H-Clamp (932-0037) | Horizontal articulator for IS and S-Series frames |
 |
IS7

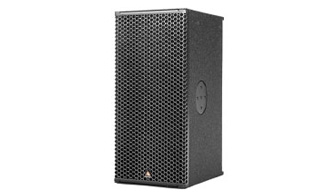

The IS7p is a 2-way, full range point source cabinet containing 2x ND7-16 Low-Mid drivers (2x 16 Ω) and an NH3-8 1.4” exit compression driver (8 Ω). The prolate spheroidal waveguides produce a nominal dispersion pattern of 70° x 40° (H x V), rotatable in 90° increments. The design of the waveguide ensures equal tonal balance when moving outside of the intended coverage pattern, delivering natural sound with no diffraction or lobing.
The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two Speakon™ NL4 connectors (IS7p), or barrier strips (IS7pb). A plate and screw rigging system is placed on four faces of the enclosure, with a multitude of accessories allowing the enclosure to be deployed seamlessly in a variety of applications.
The IS7p is suited to a wide variety of applications. Its full range capability (80 Hz) at reasonable levels qualifies for applications where sub is not required. The choice in dispersion pattern enables the IS7p to supplement larger systems as a fill cabinet, or to handle smaller applications on its own. Other target applications include performing arts centers, live performance venues, sports venues, conference centers and houses of worship.
| Frequency Range (+/-3 dB) | 80 Hz - 18 kHz |
| Nominal Directivity (-6 dB) H x V | 70° x 40° Rotatable |
| Maximum Peak SPL** | 136.5 dB |
| Components LF | 2 X ND7-LM16 |
| Components HF | Adamson NH3-8 3” Diaphragm / 1.4” Exit Compression Driver |
| Nominal Impedance LF | 8 Ω (2x 16 Ω) |
| Nominal Impedance HF | 8 Ω |
| Power Handling (AES / Peak) LF | 500 / 2000 W |
| Power Handling (AES / Peak) HF | 110 / 440 W |
| Rigging |
Integrated Rigging System |
| Connection | 2x Speakon™ NL4 or Barrier Strips |
| Height Front (mm / in) | 527 / 20.75 |
| Width (mm / in) | 251.5 / 9.9 |
| Depth (mm / in) | 356 / 14 |
| Weight (kg / lbs) | 14.6 / 32.2 |
| Supported Processing | Lake |
**12 dB crest factor pink noise at 1m, free field, using specified processing and amplification
ACCESSORIES
 |
IS7p Horizontal Bracket | The IS7p Horizontal Bracket affixes to the top and bottom rigging points of the IS7p, allowing for 180° of rotation |
 |
IS-Series Sight Mount | The IS-Series Sight Mount affixes to any rigging point on the IS7p or IS10p and offers multiple tilt angles in scenarios requiring discrete rigging solutions |
 |
IS-Series H-Clamp | The IS-Series H-Clamp affixes to any rigging point on the IS7p or IS10p and offers 360° of rotation in 10° increments. The H-Clamp attaches to a pipe like a standard C-Clamp would. |
